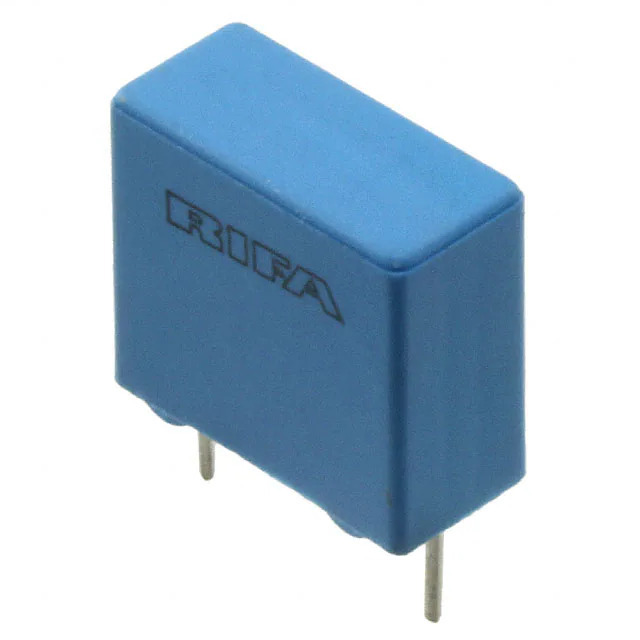

Same model may have multiple batches, images only for reference.
PHE426HB7100JR06 Kemet
Same model may have multiple batches, images only for reference.

PHE426HB7100JR06

Part No PHE426HB7100JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 5% 250VDC RADIAL
Datasheet
PHE426HB7100JR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE426
Package Bulk
Product Status Active
Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Ratings -
Features -
Base Product Number PHE426
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1379451-PHE426HB7100JR06
Ultra Librarian 3D Model Ultra Librarian PHE426HB7100JR06 CAD Model

Description

The PHE426HB7100JR06 is a radial film capacitor from KEMET's PHE426 series.

  • Capacitance: 1 µF
  • Voltage Rating: 250V AC or 160V DC
  • Tolerance: ±5%
  • Mounting Type: Through-Hole
  • Package: Radial
  • Dimensions: 0.709" L x 0.374" W (18.00mm x 9.50mm)
  • Seated Height: 0.689" (17.50mm)
  • Applications: DC link, DC filtering, high frequency switching, and high pulse DV/DT
  • REACH: Unaffected
  • ECCN: EAR99
