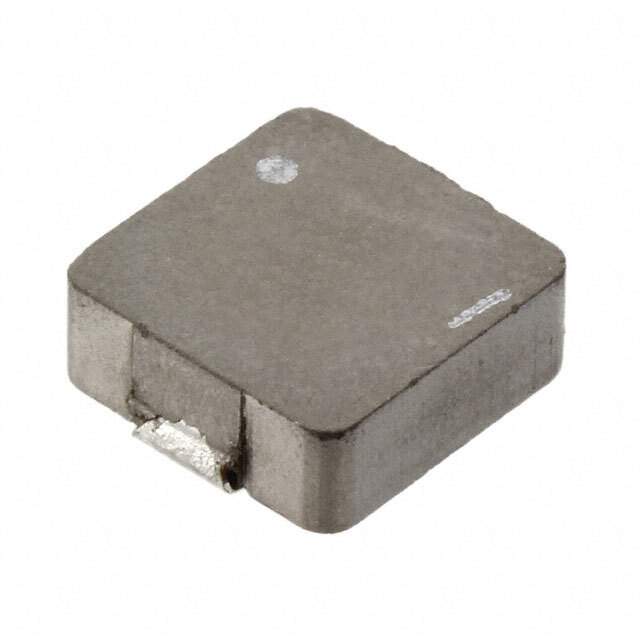

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Kemet
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 450nH
Tolerance ±20%
Current Rating 25A
Current - Saturation 27A
DC Resistance (DCR) 1.1 mOhm Max
Temperature Range - Operating -20°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 024251-MPC1040LR45C
Ultra Librarian 3D Model Ultra Librarian MPC1040LR45C CAD Model

Description

The Kemet 246495 is a ferrite core inductor with a current rating of 25A and an inductance of 450nH.

  • Current Rating: 25A
  • Inductance: 450nH
  • Height: 0.157 inches (4.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 27A
  • DC Resistance (DCR): 1.1 mOhm Max
  • Temperature Range: -20°C to 120°C
  • Category: Inductors, Coils, Chokes
  • Status: Active
