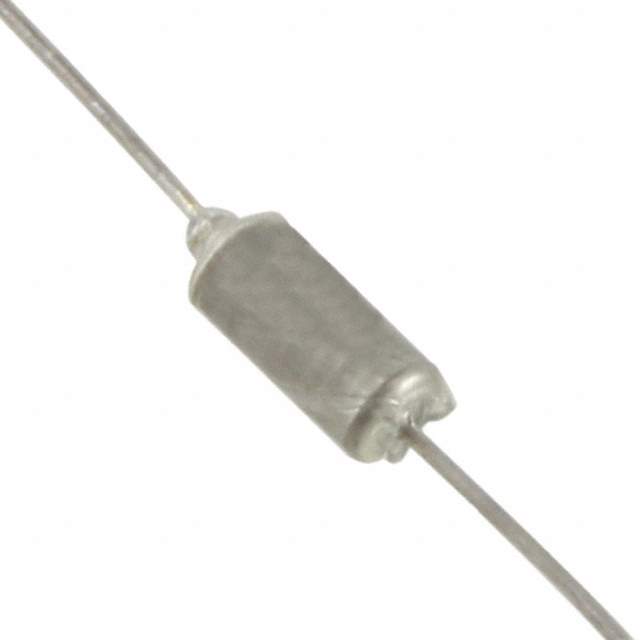

M39003/01-2356 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2356

Part No M39003/01-2356
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 1UF 10% 50V AXIAL / 1 µF Hermetically Sealed Tantalum Capacitors 50 V Axial 8Ohm @ 100kHz
Datasheet
M39003/01-2356 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Kemet
Series Military, MIL-PRF-39003/1, CSR13
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage - Rated 50 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 8Ohm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.135" Dia x 0.422" L (3.43mm x 10.72mm)
Height - Seated (Max) -
Lead Spacing -
Manufacturer Size Code A
Features High Reliability
Failure Rate M (1%)
Base Product Number M39003/01
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
California Prop 65 Warning Information
Standard Package 150 pcs
Win Source Part Number 1383567-M39003/01-2356
Ultra Librarian 3D Model Ultra Librarian M39003/01-2356 CAD Model

Description

The M39003/01-2356 is a hermetically sealed tantalum capacitor designed for high reliability applications.

  • Series: Military series MIL-PRF-39003/1 and CSR13
  • Capacitance: 1 μF
  • Voltage Rating: 50 V
  • Size: 0.135" Dia x 0.422" L (3.43mm x 10.72mm)
  • Tolerance: ±10%
  • ESR (Equivalent Series Resistance): 8 Ohm @ 100kHz
  • Mounting Type: Through-Hole
  • Package: Axial
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: Kemet
