Same model may have multiple batches, images only for reference.

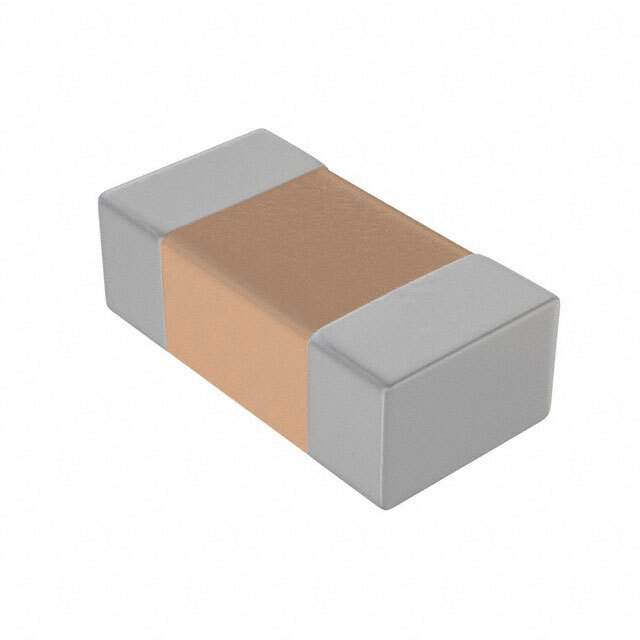

LDBAA2220JC5N0 Real Image
Same model may have multiple batches, images only for reference.

LDBAA2220JC5N0

Part No LDBAA2220JC5N0
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 5% 16VDC 1206
Datasheet
LDBAA2220JC5N0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 0.022μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.130" L x 0.067" W (3.30mm x 1.70mm)
Height - Seated (Max) 0.043" (1.10mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 1052102-LDBAA2220JC5N0
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian LDBAA2220JC5N0 CAD Model

Description

The Kemet 1052102-LDBAA2220JC5N0 is a general-purpose capacitor that has a capacitance of 0.022μF.

  • Capacitance: 0.022μF
  • Voltage Rating: 16V
  • Tolerance: ±5%
  • Dielectric Material: Polyphenylene Sulfide (PPS), Metallized - Stacked
  • Packaging: Reel - TR
  • Termination: Solder pads
  • Dimension: 0.130" L x 0.067" W (3.30mm x 1.70mm)
  • Height: 0.043" (1.10mm)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 3k pcs
  • HTSUS Code: 8532.22.00
  • Manufacturer: Kemet
