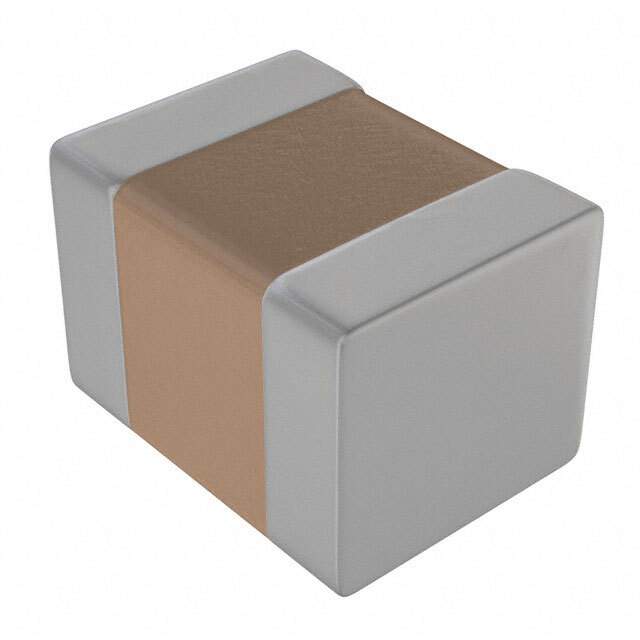

L1210R100MDWIT Real Image
Same model may have multiple batches, images only for reference.

L1210R100MDWIT

Part No L1210R100MDWIT
Manufacturer Kemet
Catalog Fixed Inductors
Description FIXED IND 10UH 900MA 133MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 900 mA 133mOhm 1210 (3225 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series L-DWI
Package Tape & Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Shielding Unshielded
DC Resistance (DCR) 133mOhm
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number L1210R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 399-9595-2,399-9595-1,399-9595-6
Standard Package 1,000
Win Source Part Number 1176862-L1210R100MDWIT
Ultra Librarian 3D Model Ultra Librarian L1210R100MDWIT CAD Model

Description

The L-DWI series L1210R100MDWIT is a drum core, wirewound inductor that is unshielded and has a ferrite core material.

  • Core Type: Drum Core
  • Inductor Type: Wirewound
  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 133mOhm
  • Frequency Self-Resonant: 23MHz
  • Package: Tape and Reel
  • Size: 1210 (3225 Metric)
  • Height Seated: 0.106" (2.70mm)
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 900 mA
  • Product Status: Last Time Buy
  • Manufacturer: KEMET
