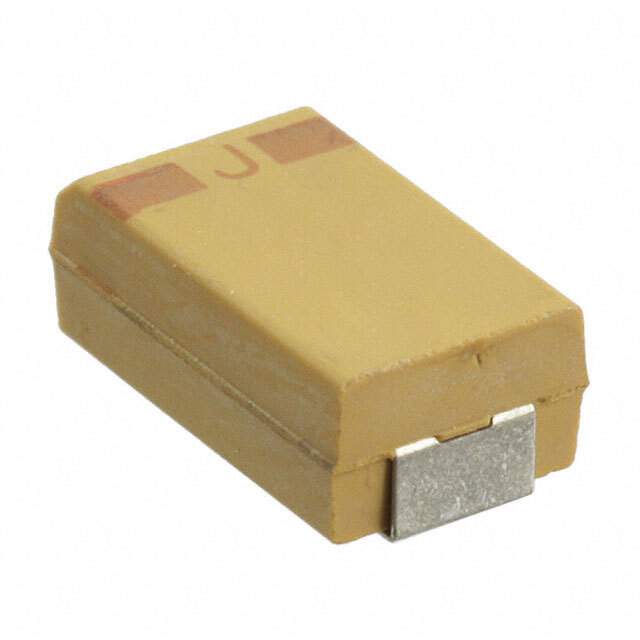

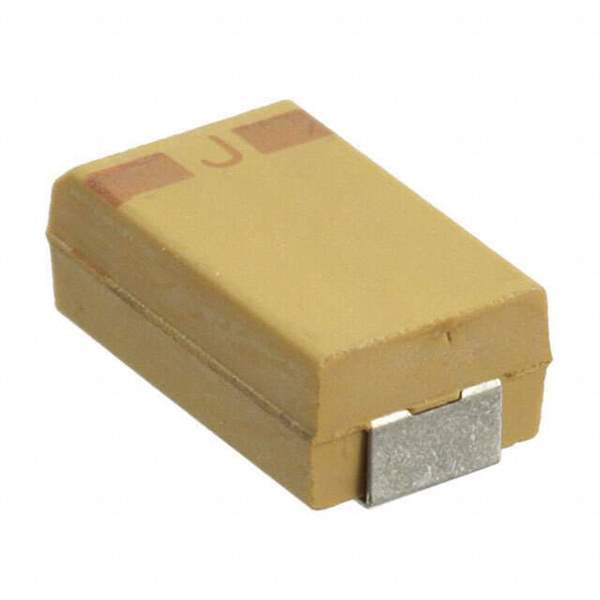

CWR11KH106KC Real Image
Same model may have multiple batches, images only for reference.

CWR11KH106KC

Part No CWR11KH106KC
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 10UF 10% 25V 2917
Datasheet
CWR11KH106KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series Military, MIL-PRF-55365/8, CWR11
Packaging Reel - TR
Capacitance 10μF
Tolerance ±10%
Voltage Rating DC 25V
Type Molded
ESR (Equivalent Series Resistance) 1.2 Ohm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Size 0.287" Dia x 0.169" L (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features Military
Failure Rate C (0.01%)
Manufacturer Homepage www.kemet.com
Win Source Part Number 737763-CWR11KH106KC
Popularity Medium
Supply and Demand Status Limited
Family Name CWR11
Introduction Date October 19, 2006
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CWR11KH106KC CAD Model

Description

The Kemet 737763-CWR11KH106KC is a military-grade molded capacitor with a capacitance of 10μF and a voltage rating of 25V DC.

  • Capacitance: 10μF
  • Voltage Rating: 25V DC
  • Tolerance: ±10%
  • ESR: 1.2 Ohm
  • Size: 0.287" Dia x 0.169" L (7.30mm x 4.30mm)
  • Mounting: SMD
  • Temperature Range: -55°C to 125°C
  • Packaging: Reel - TR
