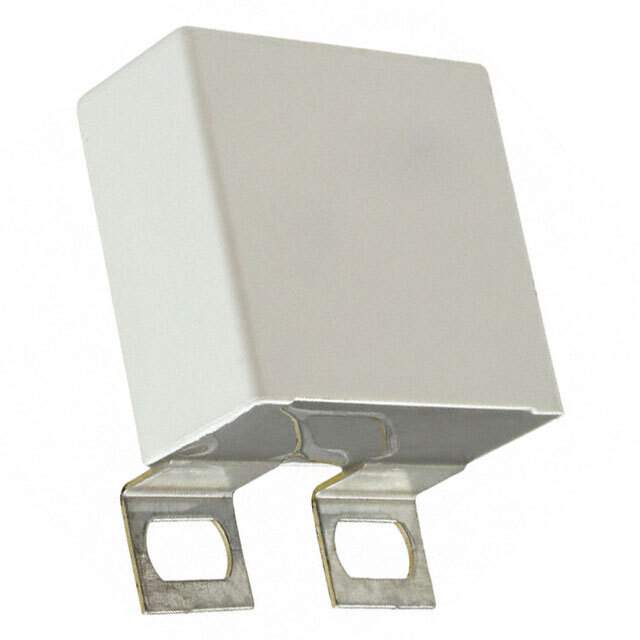

C4BSWBX3100ZAFJ Real Image
Same model may have multiple batches, images only for reference.

C4BSWBX3100ZAFJ

Part No C4BSWBX3100ZAFJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 5% 2KVDC QC TERM
Datasheet
C4BSWBX3100ZAFJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 23.3 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Chassis Mount
Dimension 1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Termination Quick Connect, Disconnect
Lead Spacing 1.004" (25.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; Snubber
Win Source Part Number 1025480-C4BSWBX3100ZAFJ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C4BSWBX3100ZAFJ CAD Model

Description

The Kemet 1025480-C4BSWBX3100ZAFJ is a polypropylene (PP), metallized capacitor designed for DC link, DC filtering, high frequency, switching and snubber applications.

  • Dielectric Material: Polypropylene (PP), Metallized
  • Applications: DC Link, DC Filtering, High Frequency, Switching and Snubber
  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V
  • Capacitance: 0.1μF
  • Tolerance: ±5%
  • ESR: 23.3 mOhm
  • Temperature Range: -40°C to 85°C
  • Packaging: Bulk
  • Mounting Type: Chassis Mount
  • Dimension: 1.634" L x 0.787" W (41.50mm x 20.00mm)
