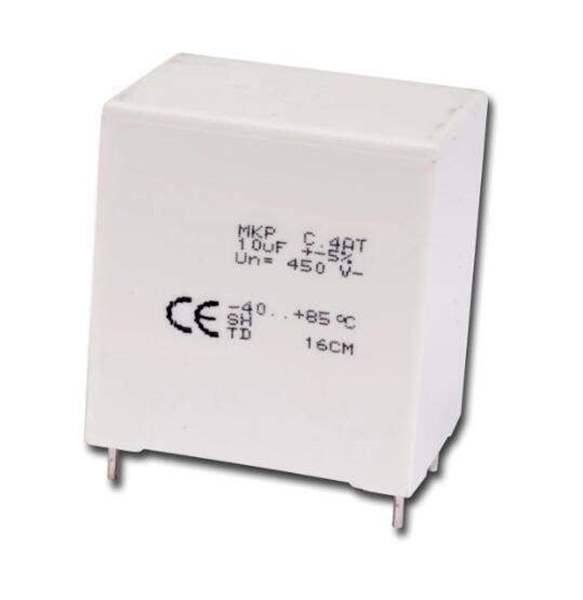

C4ATFBW4500A3EJ KEMET
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging  Box
Part Status Active
Win Source Part Number WS1306490-C4ATFBW4500A3EJ
Package Box
Product Status Active
Capacitance 5 µF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 400V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3.2 mOhms
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max) 1.299" (33.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Ultra Librarian 3D Model Ultra Librarian C4ATFBW4500A3EJ CAD Model

Description

Benefits<br /> • Self-healing • Low loss • High ripple current • High contact reliability<br /> • Suitable for high frequency applications
