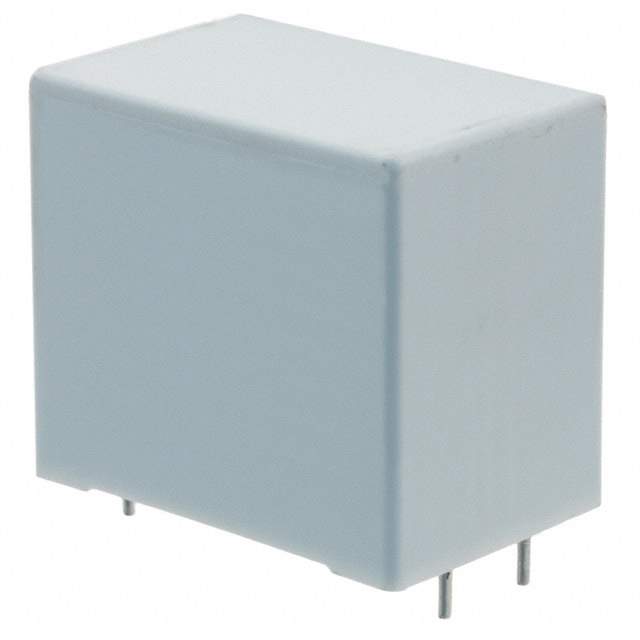

C4ASYBW3150A3GJ Real Image
Same model may have multiple batches, images only for reference.

C4ASYBW3150A3GJ

Part No C4ASYBW3150A3GJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.15UF 5% 3KVDC RAD 4LD
Datasheet
C4ASYBW3150A3GJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.15μF
Tolerance ±5%
Voltage Rating - AC 750V
Voltage Rating - DC 3000V (3kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 7.2 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 1.260" L x 0.866" W (32.00mm x 22.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; Snubber
Win Source Part Number 1117860-C4ASYBW3150A3GJ
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Motor Drive & Control, Audio, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian C4ASYBW3150A3GJ CAD Model

Description

The Kemet 473423 is a polypropylene (PP), metallized capacitor that comes with a capacitance of 0.15μF.

  • Capacitance: 0.15μF
  • Voltage Rating - AC: 750V
  • Voltage Rating - DC: 3000V (3kV)
  • ESR (Equivalent Series Resistance): 7.2 mOhm
  • Tolerance: ±5%
  • Operating Temperature: -40°C to 85°C
  • Height - Seated (Max): 1.457" (37.00mm)
  • Packaging: Bulk
  • Lead Spacing: 1.083" (27.50mm)
  • Applications: Motor drive & control, audio, test & measurement
