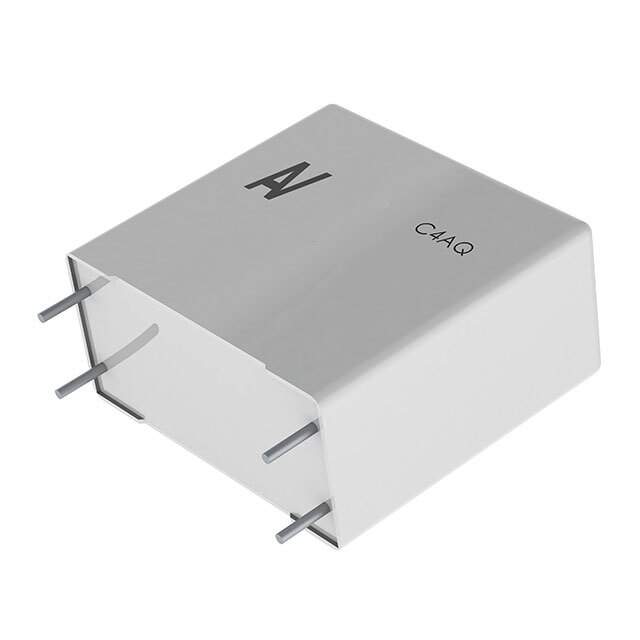

C4AQLBW5900A3OK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ
Package Bulk
Capacitance 90 µF
Tolerance ±10%
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 1.5 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 1.654" L x 1.378" W (42.00mm x 35.00mm)
Height - Seated (Max) 1.976" (50.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQLB
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1349803-C4AQLBW5900A3OK
Ultra Librarian 3D Model Ultra Librarian C4AQLBW5900A3OK CAD Model

Description

The 1349803-C4AQLBW5900A3OK is a 90 µF, ±10% tolerance, 500V rated film capacitor.

  • Series: C4AQ
  • Application: Automotive and DC filtering
  • Package: Radial - 4 leads
  • Length: 1.654"
  • Width: 1.378" (42.00mm x 35.00mm)
  • Lead Spacing: 1.476" (37.50mm)
  • Mounting Type: Through-Hole
  • ESR (Equivalent Series Resistance): 1.5 mOhms
  • Dielectric Material: Polypropylene (PP) and metallized
  • HTSUS: 8532.25.0070
  • REACH: Unaffected
  • Manufacturer: KEMET
  • Base Product Number: C4AQLB
