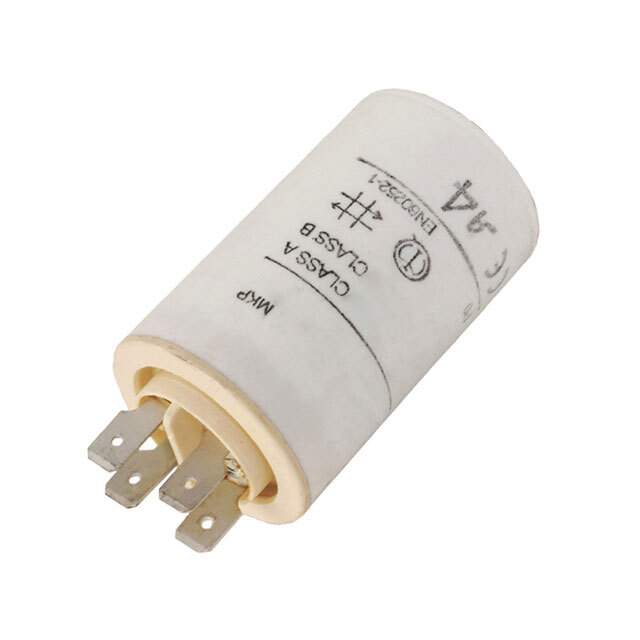

C274AC24500AA0J Real Image
Same model may have multiple batches, images only for reference.

C274AC24500AA0J

Part No C274AC24500AA0J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 5UF 5% 470VAC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series C274
Packaging Bulk
Capacitance 5μF
Tolerance ±5%
Voltage Rating - AC 470V
Dielectric Material Polypropylene (PP)
Operating Temperature Range -25°C ~ 85°C
Mounting Chassis Mount
Package Radial, Can
Dimension 1.181" Dia (30.00mm)
Height - Seated (Maximum) 2.303" (58.50mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.394" (10.00mm)
Applications Motor Run; Motor Start
Win Source Part Number 764931-C274AC24500AA0J
Popularity Medium
Supply and Demand Status Limited
Quantity per package 110
Ultra Librarian 3D Model Ultra Librarian C274AC24500AA0J CAD Model

Description

The Kemet C274AC24500AA0J is a high-quality electronic component manufactured by Kemet.

  • Series: C274
  • Capacitance: 5μF
  • Tolerance: ±5%
  • Applications: Motor Run, Motor Start
  • Voltage Rating: 470V AC
  • Packaging: Bulk
  • Lead Spacing: 0.394 inches
  • Mounting: Chassis Mount
  • Diameter: 1.181 inches
  • Height: 2.303 inches
