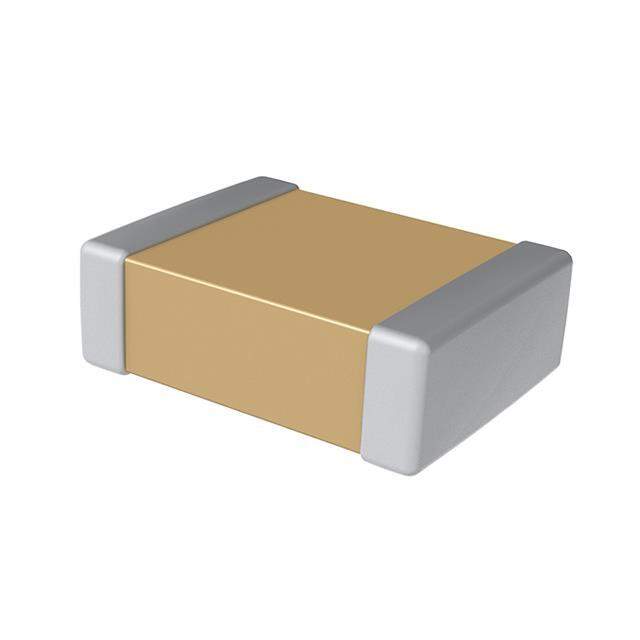

The Kemet C2220X822KHRACTU is a ceramic capacitor, specifically a surface-mount multilayer ceramic capacitor (MLCC). It is designed for a variety of applications requiring stable capacitance and reliable performance. The 2220 case size indicates its physical dimensions, and the provided part number provides key characteristics regarding capacitance, voltage rating, and temperature coefficient.

Applications:

• Bypass and decoupling in power supplies
• Filtering in signal processing circuits
• Timing circuits
• Resonant circuits
• High-frequency circuits

Features:

• High capacitance value: 8.2 nF (8200 pF)
• Voltage rating: 3 kV (3000 V)
• Temperature coefficient: X7R (±15% capacitance change from -55°C to +125°C)
• Case size: 2220 (5.7mm x 5.0mm)
• Surface mount technology (SMT)
• RoHS compliant

Benefits:

• Effective noise filtering and voltage stabilization
• Stable performance over a wide temperature range
• Reliable operation in high-voltage applications
• Easy integration into automated assembly processes
• Compact size for space-constrained applications
• Environmentally friendly

Technical Specifications:

• Capacitance: 8.2 nF (8200 pF)
• Capacitance Tolerance: ±10%
• Voltage Rating: 3 kV (3000 VDC)
• Temperature Coefficient: X7R (±15% from -55°C to +125°C)
• Operating Temperature Range: -55°C to +125°C
• Case Size: 2220 (5.7mm x 5.0mm)
• Termination Finish: Tin (Sn)

The Kemet C2220X822KHRACTU MLCC is a reliable and high-performance capacitor suitable for a wide range of applications. Its high voltage rating, stable temperature coefficient, and surface mount design make it an excellent choice for demanding applications requiring consistent performance.
