Same model may have multiple batches, images only for reference.

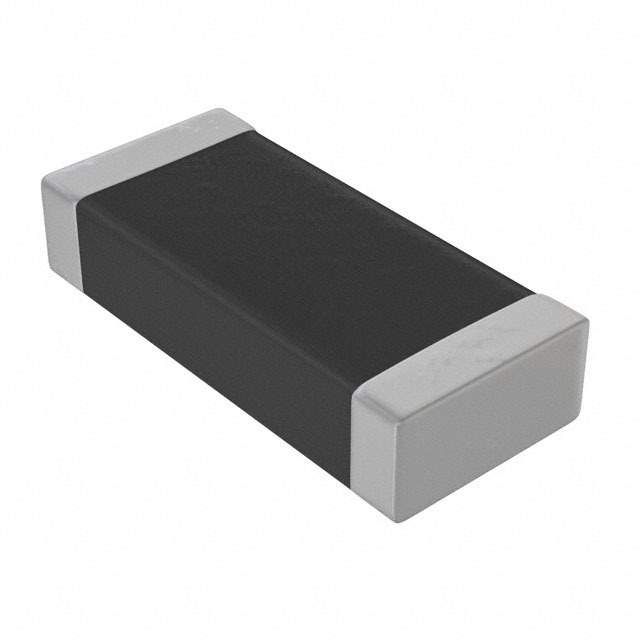

C1808X104KBRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1808X104KBRAC7800

Part No C1808X104KBRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Datasheet
C1808X104KBRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV Flex
Package Tape & Reel
Capacitance 0.1 µF
Tolerance ±10%
Voltage - Rated 630V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, Soft Termination, High Voltage
Applications Boardflex Sensitive
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Dimension 0.185" L x 0.079" W (4.70mm x 2.00mm)
Thickness (Max) 0.085" (2.15mm)
Base Product Number C1808X
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1316174-C1808X104KBRAC7800
Ultra Librarian 3D Model Ultra Librarian C1808X104KBRAC7800 CAD Model

Description

The Kemet 1316174-C1808X104KBRAC7800 is a ceramic capacitor with a capacitance of 0.1 μF and a tolerance of ±10%.

  • Capacitance: 0.1 μF
  • Tolerance: ±10%
  • Voltage Rating: 630V
  • Temperature Coefficient: X7R
  • Package: Tape and reel
  • Package/Case: 1808 (4520 Metric)
  • Temperature Range: -55°C ~ 125°C
  • Category: Capacitors
  • MSL Level: 1 (Unlimited)
  • REACH Unaffected: Yes
