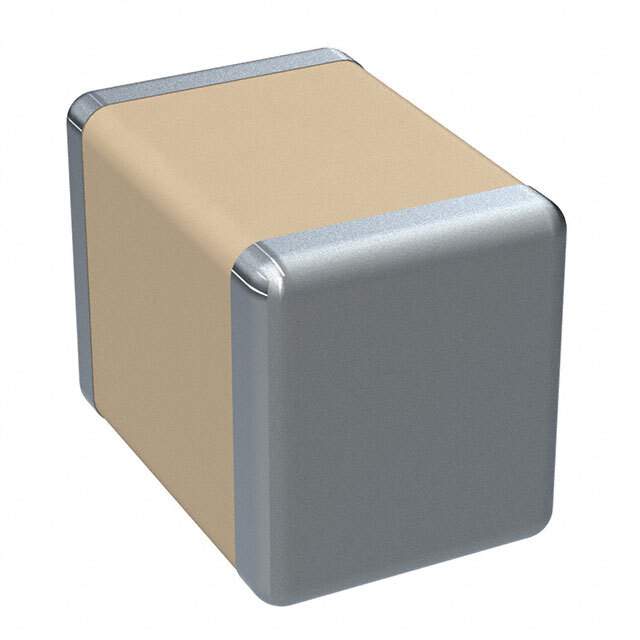

C1210C563KDRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1210C563KDRAC7800

Part No C1210C563KDRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 0.056UF 1KV X7R 1210 / 0.056 µF ±10% 1000V (1kV) Ceramic Capacitor X7R 1210 (3225 Metric)
Datasheet
C1210C563KDRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV
Package Tape & Reel
Capacitance 0.056 µF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Thickness (Max) 0.091" (2.30mm)
Base Product Number C1210C
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1339432-C1210C563KDRAC7800
Ultra Librarian 3D Model Ultra Librarian C1210C563KDRAC7800 CAD Model

Description

The KEMET C1210C563KDRAC7800 is a ceramic capacitor that belongs to the SMD Comm X7R HV series.

  • Series: SMD Comm X7R HV
  • Features: Low ESL, High Voltage
  • Application: General Purpose
  • Packaging: Tape and Reel
  • Capacitance: 0.056 µF
  • Tolerance: ±10%
  • Voltage Rating: 1000V (1kV)
  • Temperature Coefficient: X7R
  • Package Size: 1210 (3225 Metric)
  • Thickness: 0.091" (2.30mm)
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
