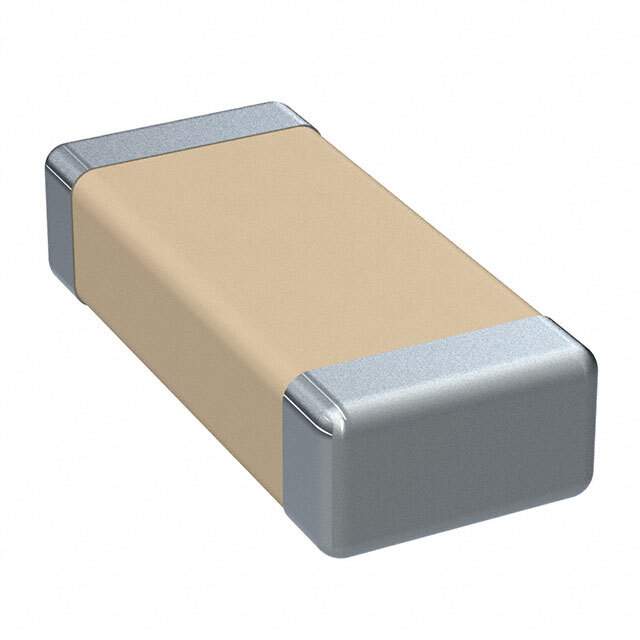

The C1206C221K2GAC7800 is a ceramic multilayer capacitor (MLCC) manufactured by Kemet. It is designed for general-purpose applications in electronic circuits, offering a balance of capacitance, voltage rating, and stability. It's commonly used in applications requiring decoupling, bypassing, and filtering.

Applications

• Decoupling capacitors in power supplies
• Bypassing high-frequency signals
• Filtering in signal processing circuits
• General-purpose applications in electronic circuits
• Consumer electronics

Features

• 1206 case size
• Capacitance of 220pF
• Voltage rating of 200V
• C0G/NP0 dielectric
• Surface Mount Technology (SMT)

Benefits

• High stability of capacitance over temperature
• Low dissipation factor
• Suitable for high-frequency applications
• Compact size for dense circuit layouts
• RoHS compliant

Specifications

The C1206C221K2GAC7800 boasts a capacitance of 220pF with a tolerance of ±10%. The voltage rating is 200V, providing a robust margin for various applications. The C0G/NP0 dielectric ensures exceptional stability with temperature, showing minimal capacitance change over its operating range (-55°C to +125°C). The temperature coefficient of capacitance is approximately 0 ±30 ppm/°C. Packaged in a standard 1206 surface mount case, it is well-suited for automated assembly processes. With a very high insulation resistance, typically exceeding 100 GΩ, leakage current is minimized. This capacitor is frequently chosen for circuits demanding stable, reliable performance, especially in high-frequency and precision applications such as RF circuits, instrumentation, and high-speed data transmission.

Due to its C0G/NP0 dielectric, the C1206C221K2GAC7800 is ideal for applications needing minimal capacitance variation with changes in temperature and voltage. It also features a low dissipation factor, making it efficient for energy storage and transfer. The capacitor is lead-free and adheres to RoHS standards.
