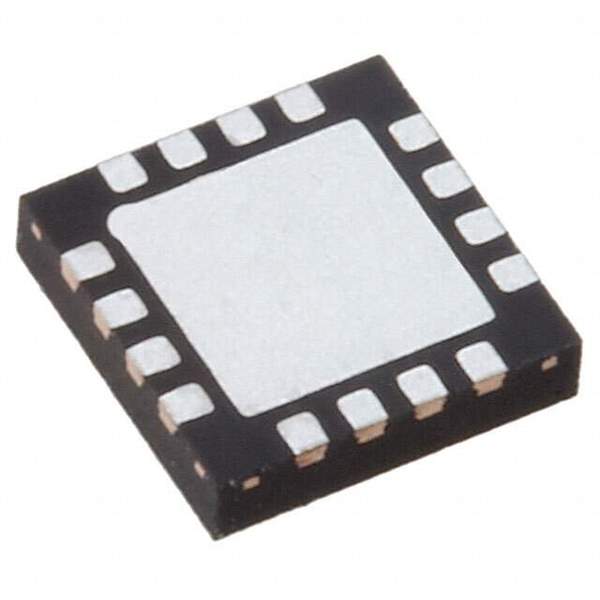

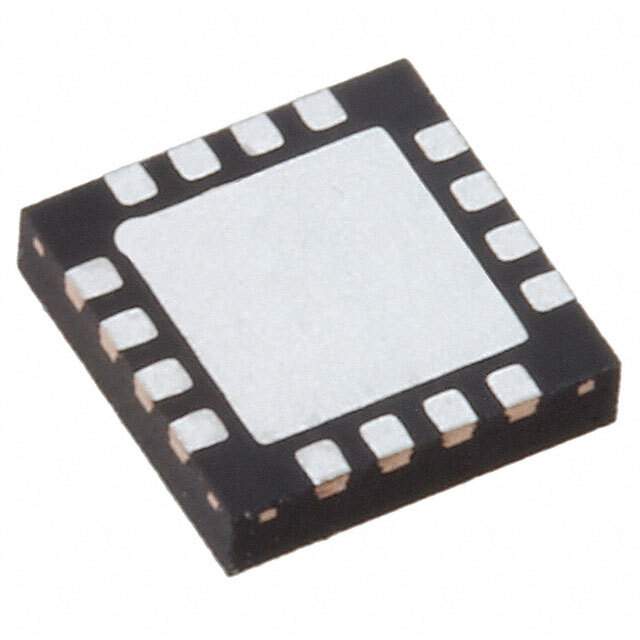

MASW-008566-TR3000 Real Image
Same model may have multiple batches, images only for reference.

MASW-008566-TR3000

Part No MASW-008566-TR3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description SWITCH SP4T DC-3.0GHZ 16QFN
Datasheet
MASW-008566-TR3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Status Active
Frequency - Lower DC
Frequency - Upper 3GHz
Isolation @ Frequency 18.5dB @ 3GHz (typ)
Insertion Loss @ Frequency 1dB @ 3GHz
Topology Reflective
Circuit SP4T
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
RF Type General Purpose
Case / Package 16-PQFN (4x4)
Win Source Part Number 1065690-MASW-008566-TR3000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MASW-008566-TR3000 CAD Model

Description

The supply and demand status is balanced, making it easy to obtain.

  • Manufacturer: M/A-Com Technology Solutions
  • Win Source Part Number: 1065690-MASW-008566-TR3000
  • Circuit: Reflective SP4T
  • Impedance: 50 Ohm
  • Frequency Range: DC to 3GHz
  • Case: 16-PQFN (4x4)
  • Operating Temperature Range: -40°C to 85°C
