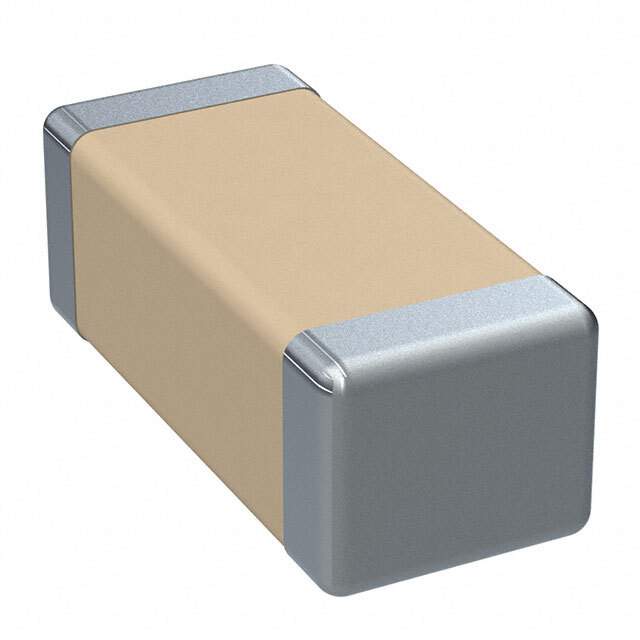

C1206C101JDGACTU Real Image
Same model may have multiple batches, images only for reference.

C1206C101JDGACTU

Part No C1206C101JDGACTU
Manufacturer Kemet
Catalog Ceramic Capacitors
Description Multilayer Ceramic Capacitor, 100 pF, 1000 V, ± 5%, C0G (NP0), 1206 [3216 Metric]
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 100 pF
Case / Package 1206
Case Code (Imperial) 1206
Case Code (Metric) 3216
Depth 1.6 mm
Dielectric C0G
Dielectric Material Ceramic
Dissipation Factor 0.1 %
Height 1.2 mm
Lead Free Lead Free
Length 3.2 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape (CT)
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8532240020, 8532240020
Temperature Coefficient 30 ppm/°C
Termination SMD/SMT
Thickness 1.3462 mm
Tolerance 5 %
Voltage 1 kV
Voltage Rating 1 kV
Voltage Rating (DC) 1 kV
Width 1.6002 mm
Win Source Part Number 1120407-C1206C101JDGACTU
Categories Ceramic Capacitors
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C1206C101JDGACTU CAD Model

Description

The KEMET C1206C101JDGACTU is a ceramic capacitor with a capacitance of 100 pF and a voltage rating of 1 kV.

  • Capacitance: 100 pF
  • Voltage Rating: 1 kV
  • Tolerance: 5%
  • Temperature Coefficient: 30 ppm/°C
  • Mounting: Surface Mounted
  • Packaging: Cut Tape
  • Dimension: 3.2mm x 1.6mm x 1.3462mm
  • Height: 1.2mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
