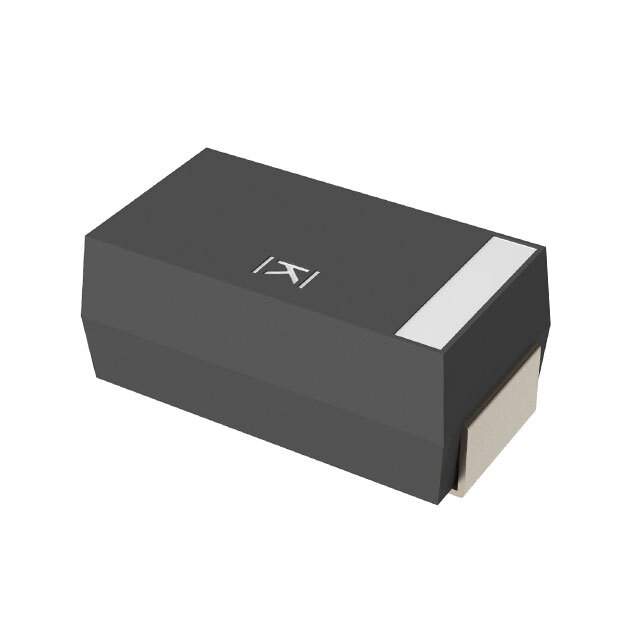

Same model may have multiple batches, images only for reference.

A700X157M006ATE010

Name: A700X157M006ATE010
Brand: Kemet
SKU: 766827
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	A700X157M006ATE010
Manufacturer	Kemet
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 150UF 20% 6.3V SMD
Datasheet	A700X157M006ATE010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	AO-Cap A700
Packaging	Reel package
Type	Polymer
Capacitance	150μF
Tolerance	±20%
Voltage Rating	6.3V
ESR (Equivalent Series Resistance)	10 mOhm
Operating Temperature Range	-55°C ~ 125°C
Ripple Current - High Frequency	4.7A @ 100kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum)	0.169" (4.30mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD
Package	2917 (7343 Metric)
Win Source Part Number	766827-A700X157M006ATE010
Popularity	Medium
Supply and Demand Status	Limited
Family Name	A700
Introduction Date	June 09, 2003
ECCN	EAR99
Country of Origin	China
Halogen Free	Unknown
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian A700X157M006ATE010 CAD Model

Description

{"FormattedDescription":"

The Kemet AO-Cap A700 series is a polymer type capacitor with a capacitance of 150μF and a voltage rating of 6.3V.

Capacitance: 150μF
Voltage Rating: 6.3V
Tolerance: ±20%
ESR: 10 mOhm
Ripple Current: 4.7A @ 100kHz
Package: 2917 (7343 Metric)
Surface Mount Land Size: 0.287\" L x 0.169\" W (7.30mm x 4.30mm)
Estimated EOL Date: 2026
