Same model may have multiple batches, images only for reference.

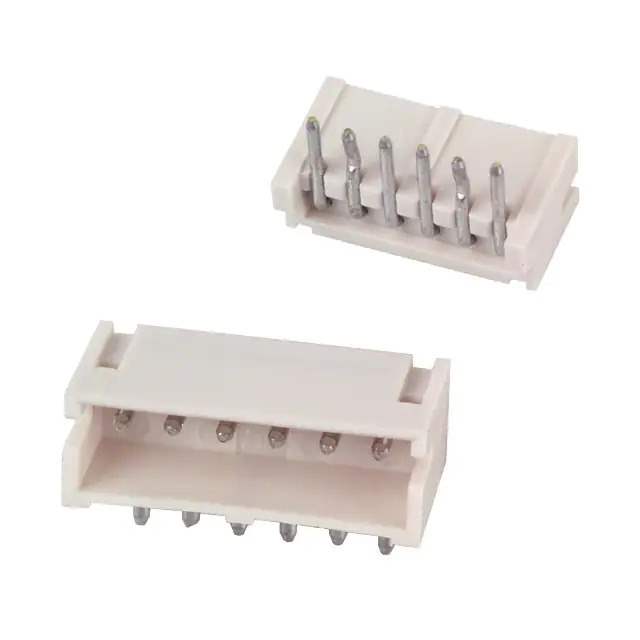

S6B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S6B-ZR(LF)(SN)

Part No S6B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number S6B-ZR
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851166-S6B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S6B-ZR(LF)(SN) CAD Model

Description

The 851166-S6B-ZR(LF)(SN) is a header connector from JST Sales America Inc.

  • Series: ZH
  • Number of Positions: 6
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Brass
  • Flammability Rating: UL94 V-0
  • Connector Type: Header
  • Mounting Type: Through Hole, Right Angle
  • Number of Rows: 1
  • Row Spacing: -
  • Pitch - Mating: 0.059" (1.50mm)
  • Shrouding: Shrouded - 4 Wall
  • Operating Temperature: -25°C ~ 85°C
  • Standard Package: 1,000
  • Type: Board to Cable/Wire
