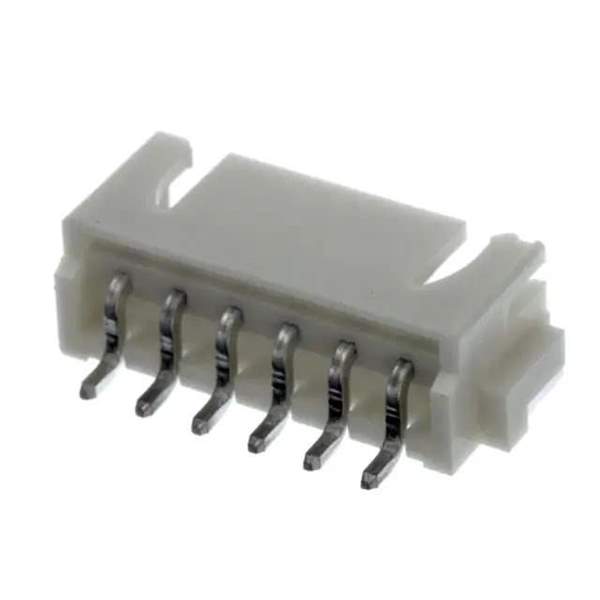

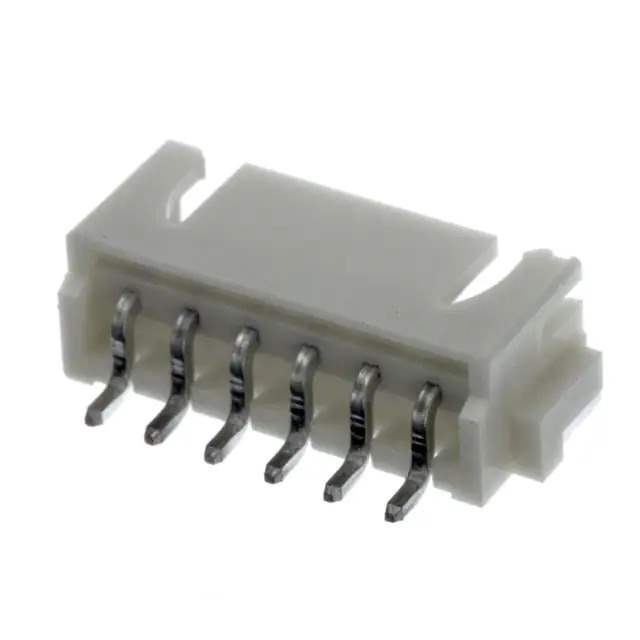

S6B-XH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S6B-XH-SM4-TB(LF)(SN)

Part No S6B-XH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 2.5MM / Connector Header Surface Mount, Right Angle 6 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S6B-XH-S
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851380-S6B-XH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S6B-XH-SM4-TB(LF)(SN) CAD Model

Description

The XH series header connector, part number 851380-S6B-XH-SM4-TB(LF)(SN), is a male pin connector with 6 positions.

  • Retention: Solder Retention
  • Fastening Type: Detent Lock
  • Mounting Type: Surface Mount, Right Angle
  • Pitch: 0.098" (2.50mm)
  • Insulation Color: Natural
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Operating Temperature: -25°C to 85°C
  • Applications: Board to Cable/Wire
  • Current Rating: 3A
  • Manufacturer: JST Sales America Inc.
  • Product Status: Active
