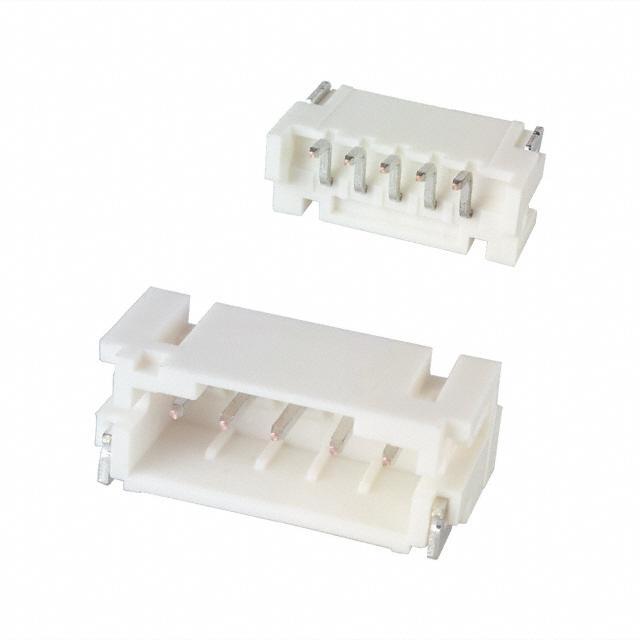

S5B-PH-SM4-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S5B-PH-SM4-TB(LF)(SN)

Part No S5B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH SIDE 5POS 2MM SMD
Datasheet
S5B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
Win Source Part Number 133241-S5B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S5B-PH-SM4-TB(LF)(SN) CAD Model

Description

The 133241-S5B-PH-SM4-TB(LF)(SN) is a 5-position surface mount connector header designed for board-to-cable/wire style connections.

  • Pitch mating: 0.079-inch
  • Contact finish: tin
  • Fastening type: detent lock
  • Voltage: 100V
  • Current: 2A
  • Packaging: reel
  • ECCN: EAR99 compliant
  • Supply and demand: balanced
  • Manufacturer: JST Sales America Inc.
