Same model may have multiple batches, images only for reference.

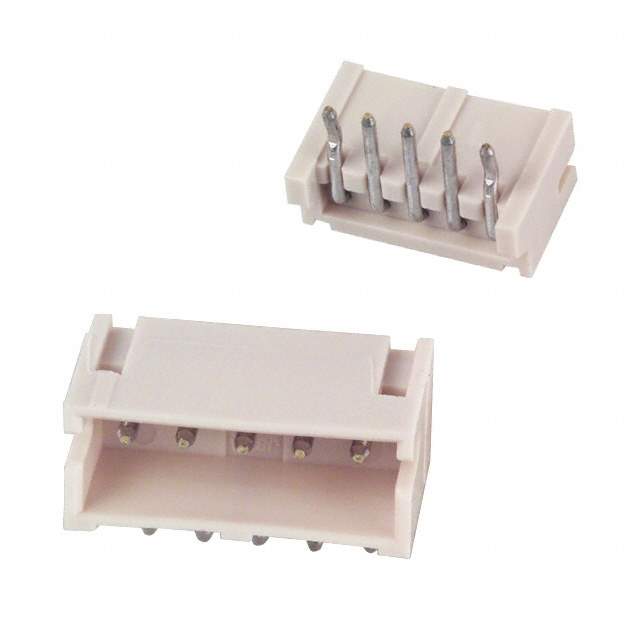

S5B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S5B-ZR(LF)(SN)

Part No S5B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number S5B-ZR
Other Names 455-1672,S5BZRLFSN,(Q)S5B-ZR(LF)(SN)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293236-S5B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S5B-ZR(LF)(SN) CAD Model

Description

The JST Sales America Inc. S5B-ZR is a male pin header connector that is perfect for use in electronic circuits.

  • Product Category: Rectangular Connectors - Headers, Male Pins
  • Fastening Type: Detent Lock
  • Positions Loaded: All Positions
  • Rows: 1
  • Positions: 5
  • Termination: Solder
  • Mounting Type: Through-Hole, Right-Angle
  • Shrouding: 4 Wall
  • Contact Shape: Circular
  • Contact Finish (Mating): Tin
  • Contact Material: Brass
  • Voltage Rating: 50V
  • Current Rating: 1A
  • HTSUS Code: 8536.69.4040
