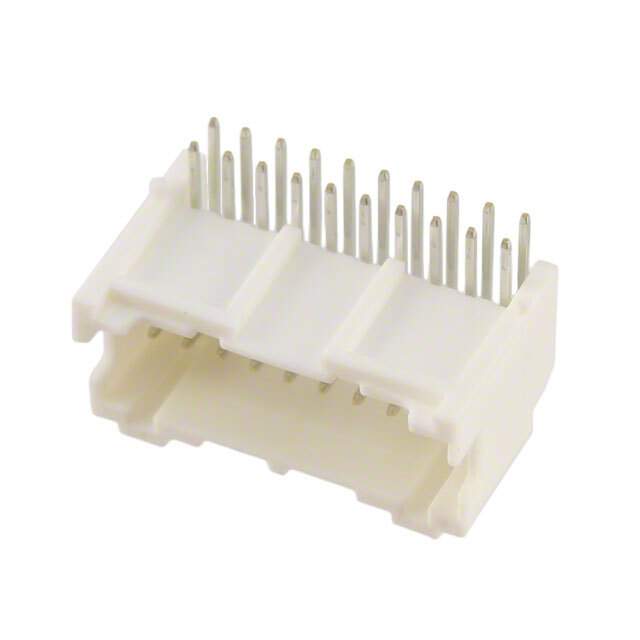

S20B-PADSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S20B-PADSS-1(LF)(SN)

Part No S20B-PADSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2MM / Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PAD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.413" (10.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT) , Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S20B-PAD
Standard Package 280
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336958-S20B-PADSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S20B-PADSS-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1336958-S20B-PADSS-1(LF)(SN) is a 20-position rectangular connector header with a 2-row design.

  • Manufacturer: JST Sales America Inc.
  • Positions: 20
  • Number of Rows: 2
  • Termination: solder
  • Contact Material: copper alloy
  • Connector Type: header
  • Contact Type: male pin
  • Fastening Type: locking ramp
  • Voltage Rating: 250V
  • Insulation Material: polybutylene terephthalate (PBT), glass-filled
  • Material Flammability Rating: UL94 V-0
  • Application: board to cable/wire
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish: tin
  • Temperature Range: -25°C to 85°C
  • RoHS: Yes
  • Standard Package: 280
  • Mounting Type: through hole, right angle
  • Shrouding: shrouded - 4 wall
  • Contact Length - Post: 0.118" (3.00mm)
  • Insulation Height: 0.413" (10.49mm)
