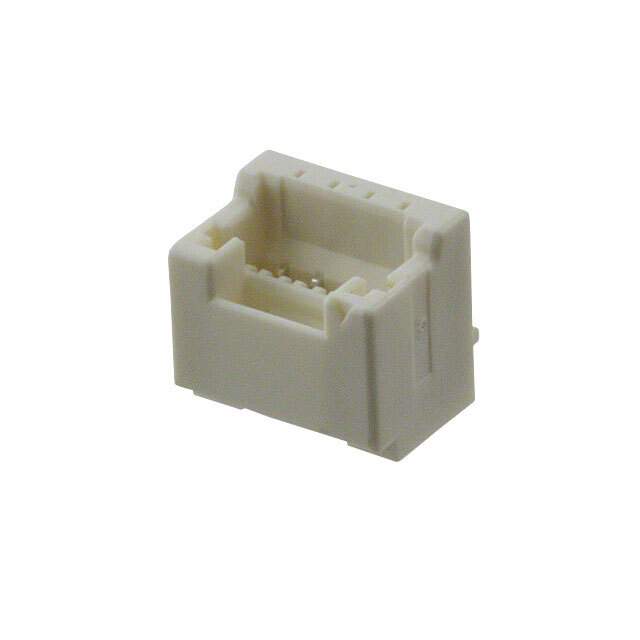

S04B-ZESK-2D(T)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S04B-ZESK-2D(T)(LF)(SN)

Part No S04B-ZESK-2D(T)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 1.5MM / Connector Header Through Hole, Right Angle 4 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tray
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.248" (6.30mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number S04B-ZES
Standard Package 1,248
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339756-S04B-ZESK-2D(T)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S04B-ZESK-2D(T)(LF)(SN) CAD Model

Description

The ZE series header connector is an outer shroud contact type connector used in board-to-cable/wire applications.

  • Positions: 4
  • Row Configuration: Single Row
  • Termination: Kinked Pin
  • Fastening Type: Locking Ramp
  • Shroud: 4 Walls
  • Material: Copper Alloy
  • Finish: Tin
  • Voltage Rating: 100V
  • UL94 Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • Packaging: Tray
  • Standard Package: 1,248
