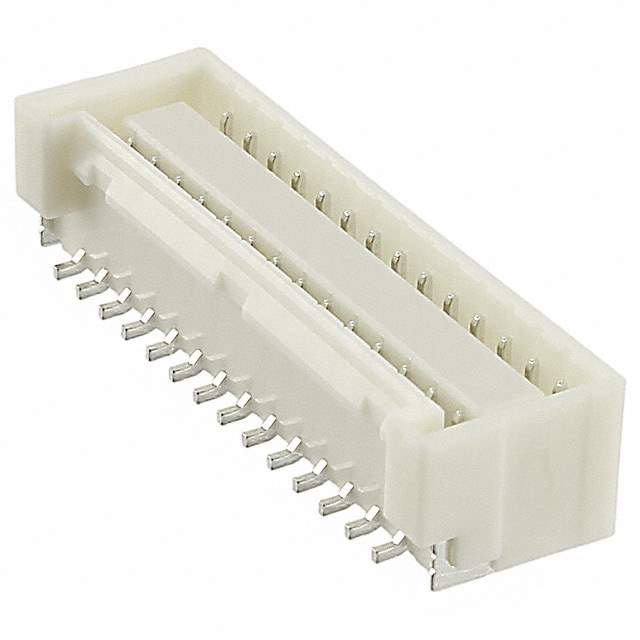

BM28B-ZPDSS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM28B-ZPDSS-TF(LF)(SN)

Part No BM28B-ZPDSS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Datasheet
BM28B-ZPDSS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZPD
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 28
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.219" (5.56mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.5mm
Base Product Number BM28B-ZP
Other Names BM28BZPDSSTFLFSN,455-2549-2,455-2549-1,455-2549-6,BM28B-ZPDSS-TF (LF)(SN)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293231-BM28B-ZPDSS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM28B-ZPDSS-TF(LF)(SN) CAD Model

Description

The BM28B-ZPDSS-TF(LF)(SN) is a male pin header connector from JST Sales America Inc.

  • Product Name: BM28B-ZPDSS-TF(LF)(SN)
  • Positions: 28
  • Pitch: 0.059" (1.50mm)
  • Fastening Type: Locking Ramp
  • Contact Termination: Solder
  • Mounting Type: Surface Mount Device (SMD)
  • ECCN: EAR99
  • Applications: Consumer electronics and industrial equipment
