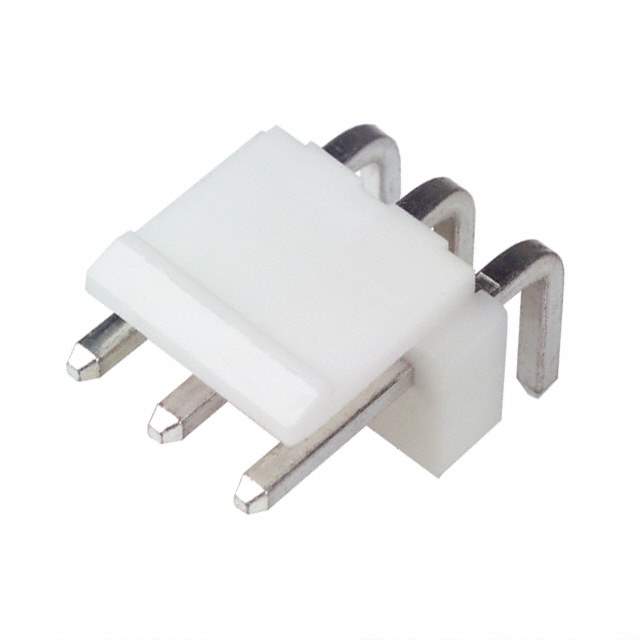

B3PS-VH Real Image
Same model may have multiple batches, images only for reference.

B3PS-VH

Part No B3PS-VH
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Other Names 455-1270
Standard Package 500
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293251-B3PS-VH
Ultra Librarian 3D Model Ultra Librarian B3PS-VH CAD Model

Description

The JST Sales America Inc. VH connector is a male pin header that belongs to the VH series.

  • Series: VH
  • Pin Type: Male
  • Positions: Three
  • Mounting: Through-Hole
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Fastening Type: Locking Ramp
  • Shrouding: One Wall
  • Row Spacing: 0.156 inches
  • Contact Length: 0.303 inches
  • Contact Shape: Square
  • Style: Board to cable/wire
