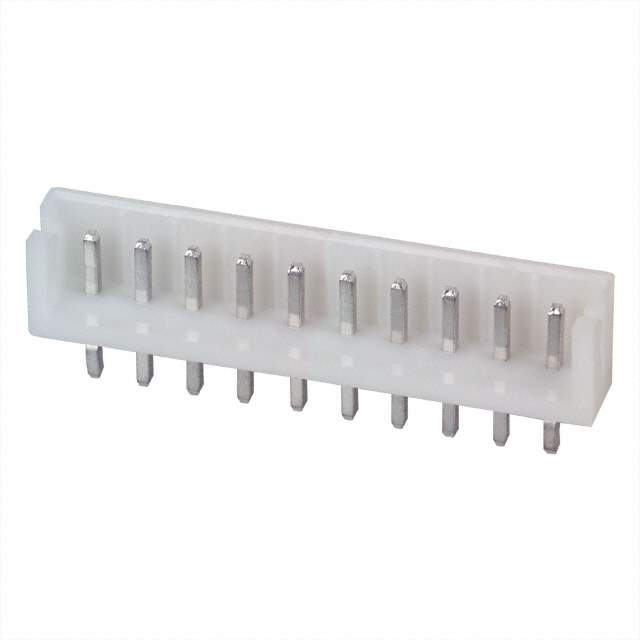

Same model may have multiple batches, images only for reference.

B10B-EH-A

Name: B10B-EH-A
Brand: JST Sales America Inc.
SKU: 1293303
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B10B-EH-A
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	EH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.1mm
Other Names	455-1022
Standard Package	500
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293303-B10B-EH-A
Ultra Librarian 3D Model	Ultra Librarian B10B-EH-A CAD Model

Alternative Products

Description

The 1293303-B10B-EH-A is a 10-position male pin header connector from JST Sales America Inc.

Manufacturer: JST Sales America Inc.
Series: EH
Application: Board to cable/wire
Positions: 10
Fastening Type: Friction lock
Contact Material: Brass
Contact Finish: Tin-lead
Voltage Rating: 250V
Current Rating: 3A
Mounting: Through-hole
Shrouding: 3-wall
Insulation Material: Polyamide (PA66), nylon 6/6
Insulation Color: Natural
Temperature Range: -25°C to 85°C
Contact Length - Mating: 0.130" (3.30mm)
Contact Length - Post: 0.126" (3.20mm)
Packaging: Bulk
Standard Package: 500
