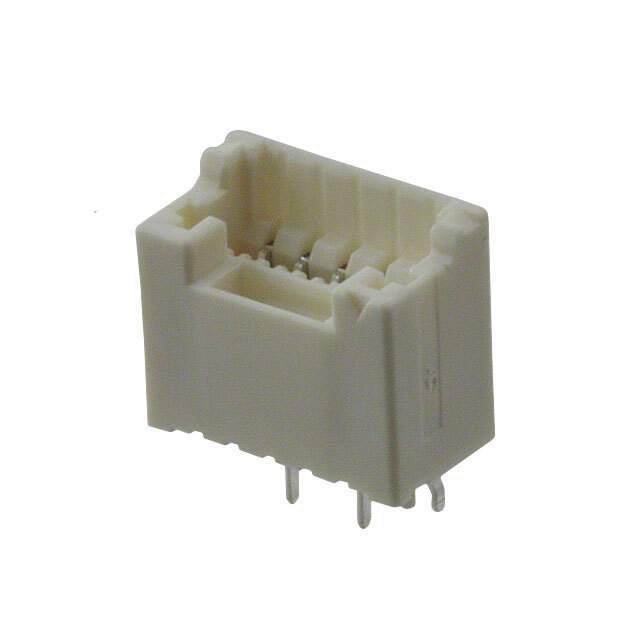

B05B-ZESK-1D(T)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B05B-ZESK-1D(T)(LF)(SN)

Part No B05B-ZESK-1D(T)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tray
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number B05B-ZES
Other Names 455-2661,B05B-ZESK-1D(T)(LF)(SN)(N),B05BZESK1DTLFSNN
Standard Package 1,408
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293240-B05B-ZESK-1D(T)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B05B-ZESK-1D(T)(LF)(SN) CAD Model

Description

The 1293240-B05B-ZESK-1D(T)(LF)(SN) electronic component is a rectangular connector header with male pins.
