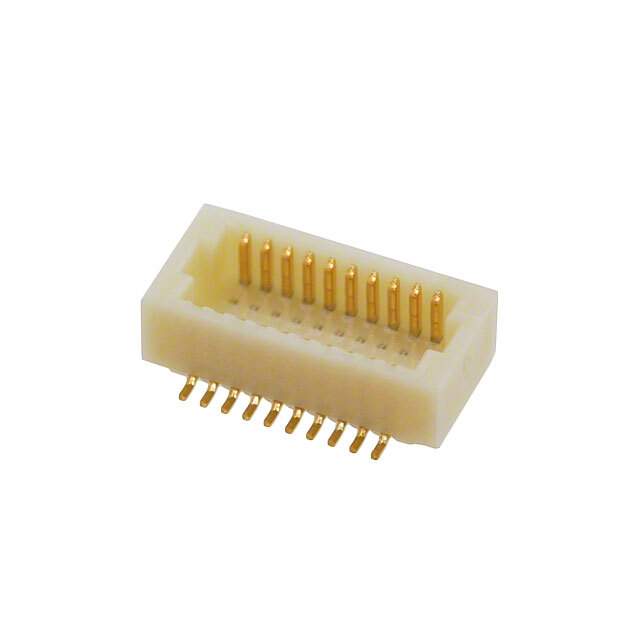

20P3.0-JMCS-G-TF(N) Real Image
Same model may have multiple batches, images only for reference.

20P3.0-JMCS-G-TF(N)

Part No 20P3.0-JMCS-G-TF(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Series JMC
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 3mm
Base Product Number 20P3.0-J
Other Names 20P30JMCSGTFN,455-2858TR,455-2858DKR,455-2858CT
Standard Package 2,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293992-20P3.0-JMCS-G-TF(N)
Ultra Librarian 3D Model Ultra Librarian 20P3.0-JMCS-G-TF(N) CAD Model

Description

The JMC series 20-position plug connector is a rectangular connector array designed for board-to-board interconnects.

  • Series: JMC
  • Positions: 20
  • Connector Type: Plug
  • Application: Board-to-board interconnects
  • Features: Outer shroud contacts
  • Pitch: 0.020 inches (0.5mm)
  • Contact Finish: Gold
  • Packaging: Tape and reel
  • Mated Stacking Height: 3mm
  • Mounting: Surface mount technology
  • Status: Obsolete
  • Standard Package: 2,500
