Same model may have multiple batches, images only for reference.

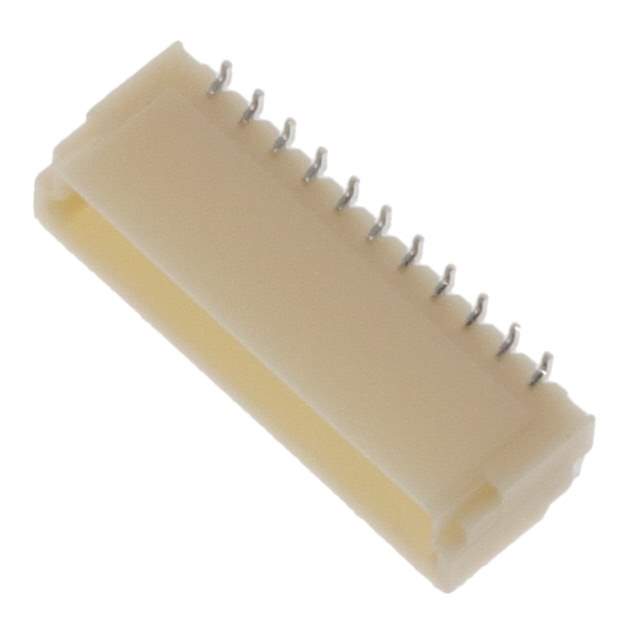

BM11B-SRSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM11B-SRSS-TBT(LF)(SN)

Part No BM11B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog HOT - SALES and EOL Components
Description CONN HEADER SMD 2POS 1MM / 1.0 mm Pitch-Disconnectable Insulation Displacement Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 236423-BM11B-SRSS-TBT(LF)(SN)
Popularity Low
Supply and Demand Status Limited
Introduction Date November 29, 2010
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BM11B-SRSS-TBT(LF)(SN) CAD Model

Description

Description

The BM11B-SRSS-TBT(LF)(SN) connector delivers exceptional connectivity solutions for various electronic interfaces. Its superior design is intended to provide reliability and durability in both commercial and industrial settings.

Features and Benefits

  • Robust and Durable Construction
  • LF (lead-free) and SN (tin) Plating for Reduced Environmental Impact
  • Secure and Stable Connections
  • Wide Compatibility with Various Systems

Applications

  • Data Communication Networks
  • Automotive Connectivity
  • Medical Equipment
  • Aerospace Platforms
