Same model may have multiple batches, images only for reference.

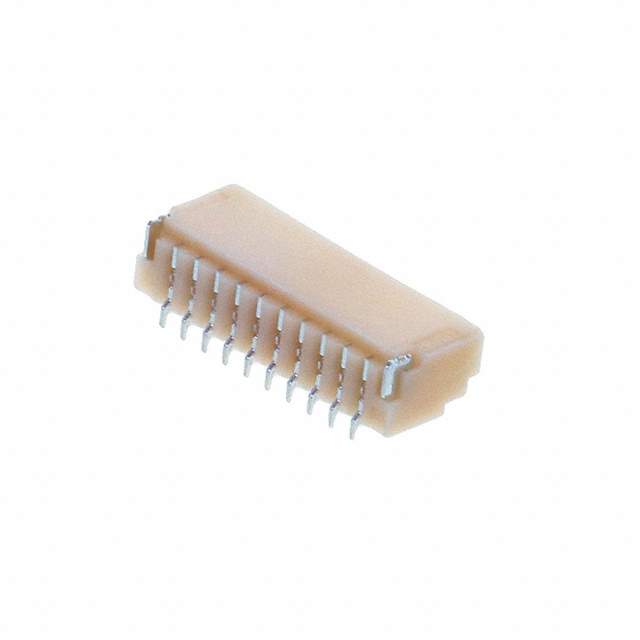

BM10B-SRSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM10B-SRSS-TBT(LF)(SN)

Part No BM10B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount 10 position 0.039" (1.00mm)
Manufacturer JST Sales America Inc.
Series SH/SR
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Family Name BM10B-SR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-3699-2, 455-3699-1
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913380-BM10B-SRSS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM10B-SRSS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. BM10B-SR series connector header is a surface mount component with 10 positions and a pitch of 1.00mm.

  • Operating Temperature: -25°C to 85°C
  • Package: packaged on a reel
  • Mounting: can be mounted on the surface
  • Family: BM10B-SR family
  • Category: Connectors
  • ECCN: EAR99 compliant
  • Popularity: high popularity in the market
  • Package Quantity: 1500 components
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 33 weeks
  • HTSUS code: 8536.69.4040
  • Component Part Number: 913380-BM10B-SRSS-TBT(LF)(SN)
  • Other Part Numbers: 455-3699-2 and 455-3699-1
