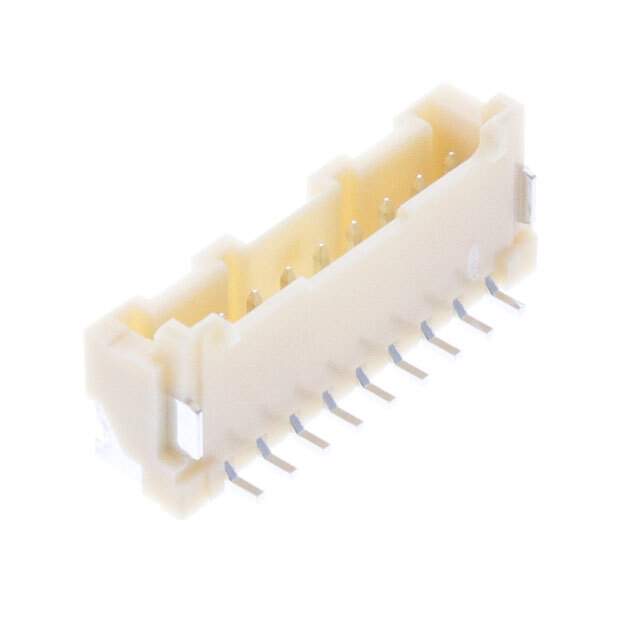

BM09B-PASS-TFT(LF)(SN)

Name: BM09B-PASS-TFT(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1004258
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM09B-PASS-TFT(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 9POS 2MM / Connector Header Surface Mount 9 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PA
Package	Tape & Reel (TR)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11.1mm, 16mm, 16.2mm
Base Product Number	BM09B-PA
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	500
Win Source Part Number	1004258-BM09B-PASS-TFT(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian BM09B-PASS-TFT(LF)(SN) CAD Model

Alternative Products

Description

The 1004258-BM09B-PASS-TFT(LF)(SN) is a 9 position male pin header connector manufactured by JST Sales America Inc.

Positions: 9
Connector Type: Male Pin Header
Termination: Solder
Fastening Type: Locking Ramp
Voltage Rating: 250V
Current Rating: 3A
Shrouded: 4 Wall
Insulation Material: Polyamide (PA), Nylon
Pitch-Mating: 2.00mm
Mated Stacking Height: 11.1mm, 16mm, 16.2mm
Contact Finish-Mating: Tin
Contact Material: Copper Alloy
Temperature Range: -25°C to 85°C
RoHS Compliant: Yes
Application: Industrial
Popularity: Medium
