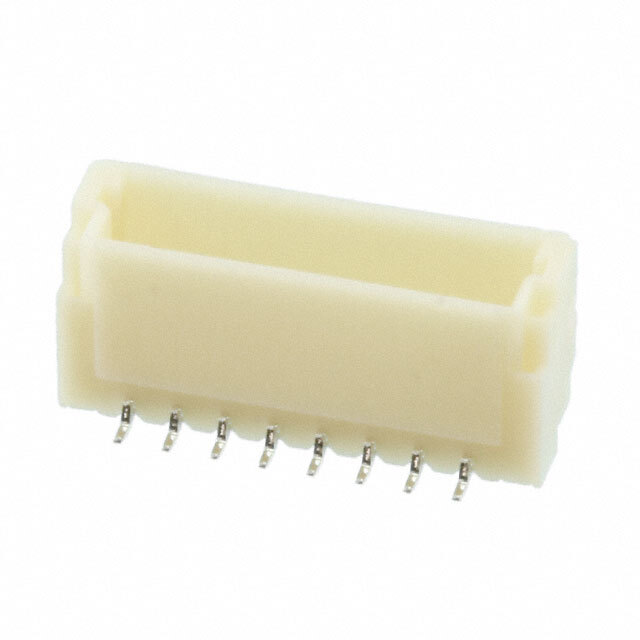

BM08B-SRSS-TBT(LF)(SN)

Part No BM08B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header HDR 8 POS 1mm Solder ST SMD T/R / CONN HEADER SH 8POS TOP 1MM TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 118127-BM08B-SRSS-TBT(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BM08B-SRSS-TBT(LF)(SN) CAD Model

Description

BM08B-SRSS-TBT(LF)(SN) Connector

Designed for high-efficiency performance, this connector is perfect for projects where durability and longevity are paramount. It's particularly suited for emerging technologies requiring robust connectivity solutions.

  • Applications:
    • Renewable energy systems
    • Electric vehicles
    • Smart grid technologies
  • Features and Benefits:
    • Minimal signal disruption over complex networks
    • Enhanced durability with quality materials
    • Easy to integrate into modern devices
  • Additional Details:
    • High flexibility in design configurations
    • Withstands varied environmental exposures
    • Stable connection even under mechanical stress
