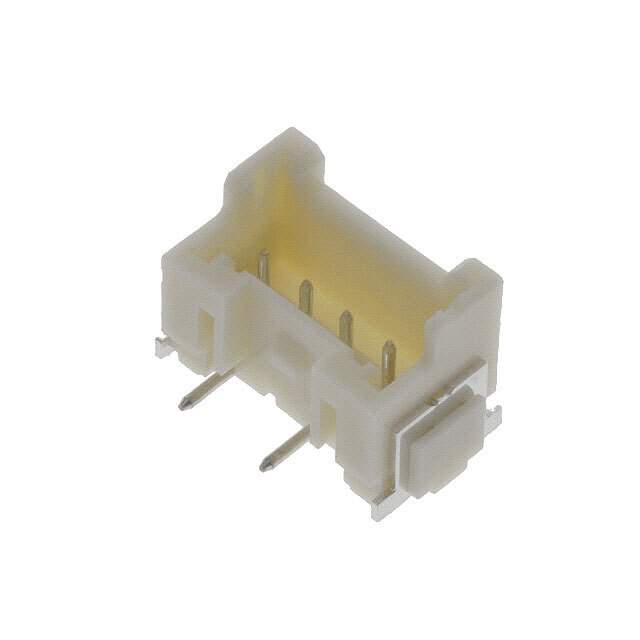

BM04B-XASS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM04B-XASS-TF(LF)(SN)

Part No BM04B-XASS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 4POS 2.5MM / Connector Header Surface Mount 4 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.370" (9.40mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.9mm
Base Product Number BM04B-XA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names PBM04B-XASS-TFLFSN,455-4088-6,BM04B-XASS-TF(LF)(SN)-ND,BM04B-XASS-TF(LF)(SN)-,455-4088-2,455-4088-1
Standard Package 500
Win Source Part Number 1181453-BM04B-XASS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM04B-XASS-TF(LF)(SN) CAD Model

Description

The XA series from JST Sales America Inc. offers a header connector with a male pin contact type.

  • Manufacturer: JST Sales America Inc.
  • Series: XA
  • Contact Type: Male Pin
  • Positions: 4
  • Loaded Positions: All
  • Mounting Type: SMD (SMT)
  • Pitch Mating: 0.098" (2.50mm)
  • Contact Finish (Mating & Post): Tin
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Package: Tape & Reel
  • Standard Package: 500
  • Operating Temperature Range: -25°C to 85°C
