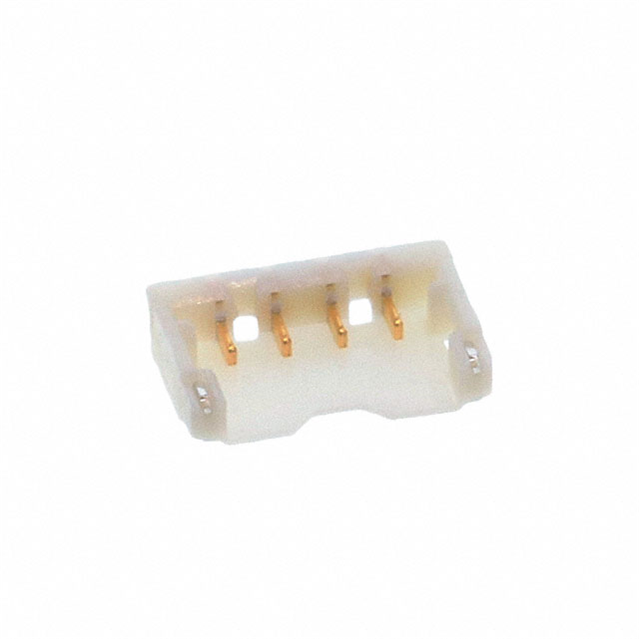

BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image1 BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image1 BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image2
BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image1 BM04B-ACHSS-A-GAN-TF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

BM04B-ACHSS-A-GAN-TF(LF)(SN)

Part No BM04B-ACHSS-A-GAN-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1.2MM / Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ACH
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.047" (1.20mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.055" (1.40mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1.5A
Voltage Rating 50V
Base Product Number BM04B-AC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2204-6,455-2204-2,455-2204-1,BM04BACHSSAGANTFLFSN,BM04B-ACHSS-A-GAN-TFLFSN
Standard Package 4,500
Win Source Part Number 1049446-BM04B-ACHSS-A-GAN-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM04B-ACHSS-A-GAN-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. connector is a board to cable/wire connector with a pitch of 0.047" (1.20mm) and 4 positions.

  • Pitch: 0.047" (1.20mm)
  • Positions: 4
  • Application: Board to Cable/Wire
  • Termination Feature: Solder Retention
  • Contact Type: Male Blade
  • Shrouded: 3 Walls
  • Insulation Material: Thermoplastic
  • Operating Temperature: -25°C to 85°C
  • Mounting: Surface Mount, Right Angle
  • Current Rating: 1.5A
  • Voltage Rating: 50V
  • ECCN: EAR99
