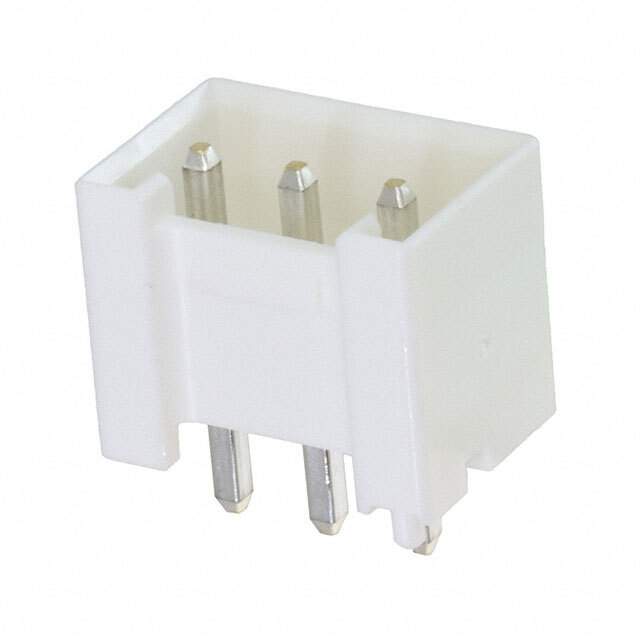

The B3P-VH-FB-B is a 3-position, wire-to-board connector from JST's VH series. This series is known for its high reliability and robust design, making it suitable for power supply and signal connections in various applications.

Applications:

• Power supply connections in electronic devices
• Signal connections in industrial equipment
• Internal wiring in consumer electronics
• Battery connections
• Motor control circuits

Features:

• Number of Positions: 3
• Wire-to-Board Connector
• VH Series
• Friction lock mechanism
• Durable construction

Benefits:

• Secure and reliable connection
• Easy mating and unmating with the friction lock
• Robust design for harsh environments
• Suitable for power and signal applications
• Long-term performance

Additional Details:

The B3P-VH-FB-B connector typically accepts wires with a gauge range of 22 to 16 AWG. The VH series features a robust design and a secure friction lock mechanism that prevents accidental disconnection. The housing material is typically made of a durable thermoplastic that can withstand high temperatures and mechanical stress. The 'FB' likely designates a specific housing style or color, and the 'B' could indicate black color. The contact material is usually tin-plated brass or phosphor bronze. Mating headers are available in various configurations (straight, right-angle) for different board mounting options. Datasheets should be consulted for specific wire gauge compatibility, current rating, and mating connector part numbers.
