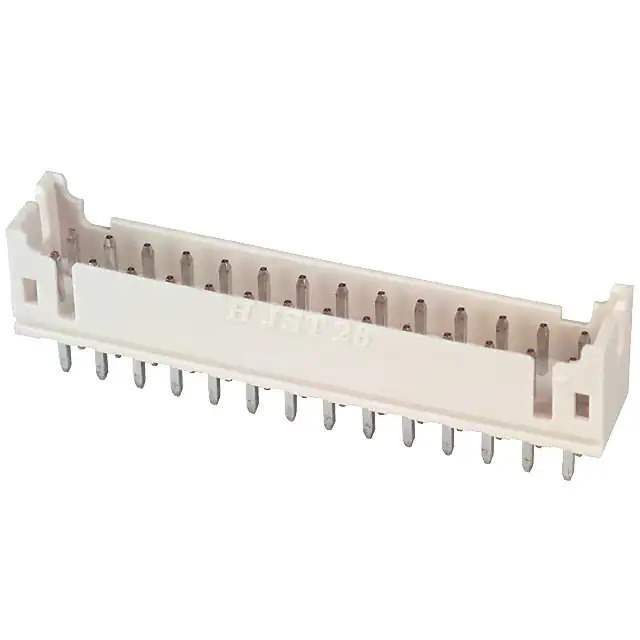

B28B-PHDSS(LF)(SN)

Name: B28B-PHDSS(LF)(SN)
Brand: JST Sales America Inc.
SKU: 862986
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B28B-PHDSS(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 28POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PHD
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	28
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.291" (7.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.8mm
Base Product Number	B28B-PHD
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862986-B28B-PHDSS(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B28B-PHDSS(LF)(SN) CAD Model

Alternative Products

Description

The 862986-B28B-PHDSS(LF)(SN) is a male pin header connector from the PHD series.

Series: PHD
Connector Type: Rectangular Connector
Number of Positions: 28
Pitch: 2.00mm
Mounting Type: Through-Hole
Fastening Type: Detent Lock
Voltage Rating: 250V
Current Rating: 3A
Contact Material: Copper Alloy
Shrouding: Shrouded - 4 Walls
Insulation Material: Polyamide (PA), Nylon, Glass Filled
