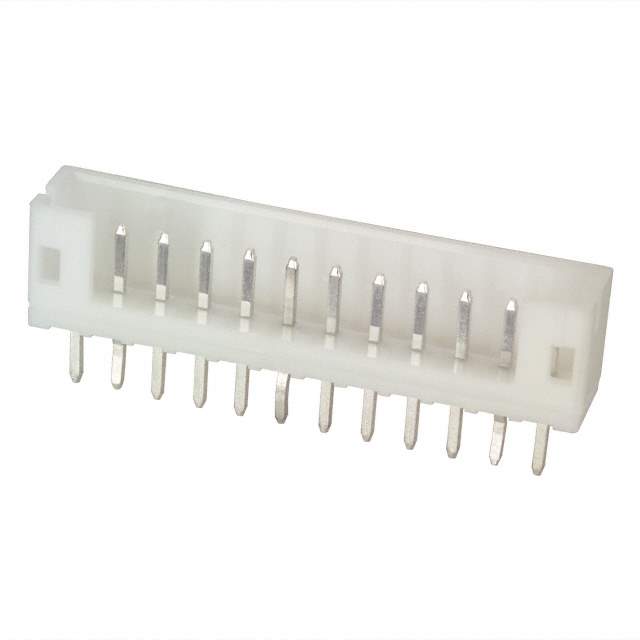

B12B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-PH-K-S(LF)(SN)

Part No B12B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 12POS 2MM
Datasheet
B12B-PH-K-S(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Win Source Part Number 1021362-B12B-PH-K-S(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B12B-PH-K-S(LF)(SN) CAD Model

Description

The 1021362-B12B-PH-K-S(LF)(SN) from JST Sales America Inc. is a 12 position header connector used in board to cable/wire applications.

  • Voltage Rating: 100V
  • Current Rating: 2A
  • Contact Type: Male Pin
  • Connector: Shrouded - 4 Wall
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Packaging: Bulk
  • Temperature Range: -25°C to 85°C
  • Contact Shape: Square
  • Overall Contact Length: 0.333 inches (8.45mm)
