Same model may have multiple batches, images only for reference.

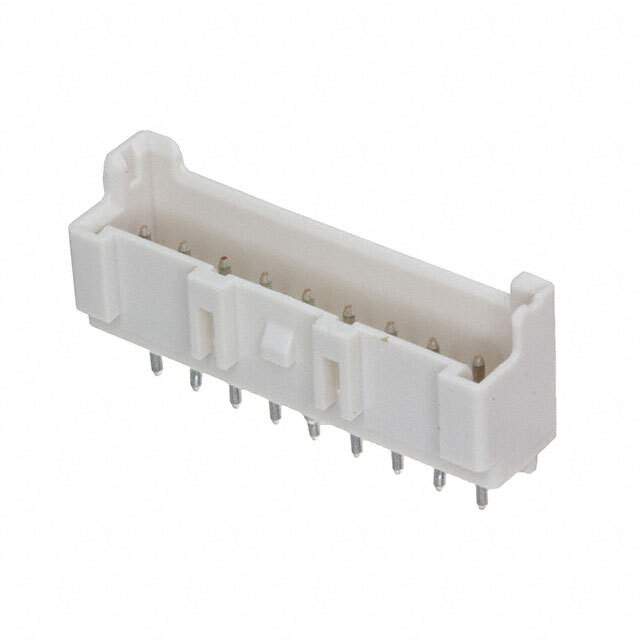

B09B-XASK-1-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B09B-XASK-1-A(LF)(SN)

Part No B09B-XASK-1-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 9POS 2.5MM / Connector Header Through Hole 9 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.3mm
Base Product Number B09B-XAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-4123
Standard Package 250
Win Source Part Number 1184907-B09B-XASK-1-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B09B-XASK-1-A(LF)(SN) CAD Model

Description

The 1184907-B09B-XASK-1-A(LF)(SN) is a rectangular connector header with male pins manufactured by JST Sales America Inc.

  • Pins: Male
  • Features: Board Guide
  • Fastening Type: Locking Ramp
  • Application: Board to Cable/Wire
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Insulation Material: Polyamide, Nylon 6/6, Glass Filled
  • Features: Shrouded 4 Wall
  • Insulation Color: Natural
