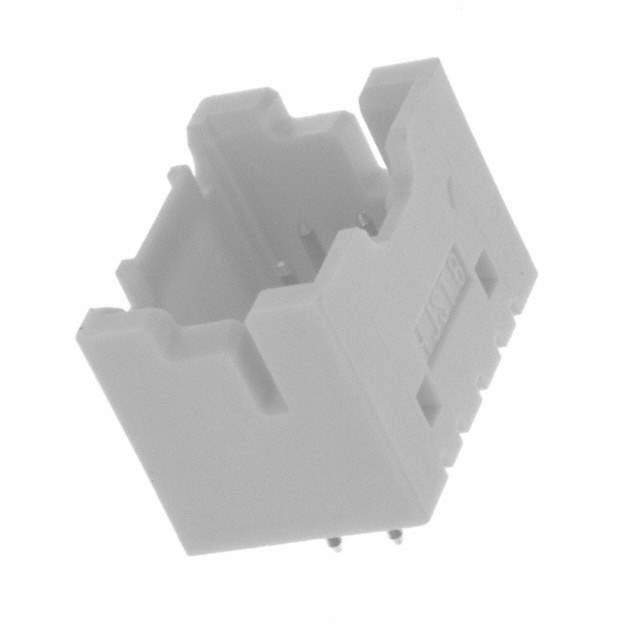

B08B-XADSS-N(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B08B-XADSS-N(LF)(SN)

Part No B08B-XADSS-N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.5MM / Connector Header Through Hole 8 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.398" (10.11mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 13.8mm
Base Product Number B08B-XAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1997,B08BXADSSNLFSN
Standard Package 200
Win Source Part Number 1175934-B08B-XADSS-N(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B08B-XADSS-N(LF)(SN) CAD Model

Description

The XAD series header connector from JST Sales America Inc. is a 2-row male pin header with a locking ramp fastening type.

  • Positions: 8
  • Pitch: 0.098" (2.50mm)
  • Voltage Rating: 250V
  • Contact Material: Copper alloy
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Flammability Rating: UL94 V-0
  • Shrouded: 4 Walls
  • Mounting Type: Through-hole
  • Contact Length of Post: 0.138" (3.50mm)
  • Insulation Height: 0.398" (10.11mm)
  • Temperature Range: -25°C to 85°C
  • Application: Board to cable/wire
