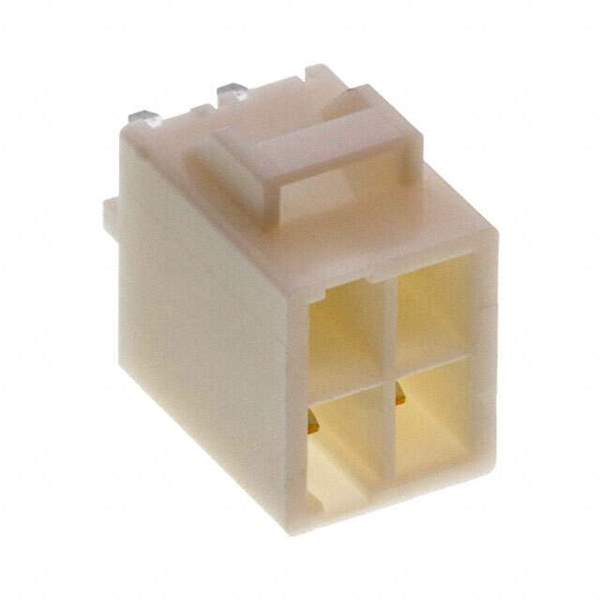

B04P-HL-A(LF)(SN)

Name: B04P-HL-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 862851
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B04P-HL-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3.96MM
Datasheet	B04P-HL-A(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	HL
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.156" (3.96mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Guide
Temperature Range - Operating	-25°C ~ 90°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	7A
Voltage Rating	300V
Base Product Number	B04P
Standard Package	200 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862851-B04P-HL-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B04P-HL-A(LF)(SN) CAD Model

Alternative Products

Description

The 862851-B04P-HL-A(LF)(SN) is a rectangular connector header with male pins.

Series: HL series
Positions: 4
Board Guide: Yes
Termination: Through-Hole Solder
Fastening: Latch Holder
Package: Bulk
Contact Material: Brass
Voltage Rating: 300V
Pitch: 0.156" (3.96mm)
Shrouded: 4-Wall
Operating Temperature Range: -25°C to 90°C
Current Rating: 7A
Product Status: Active
Standard Package: 200 pcs
Connection Type: Board-to-Cable/Wire
