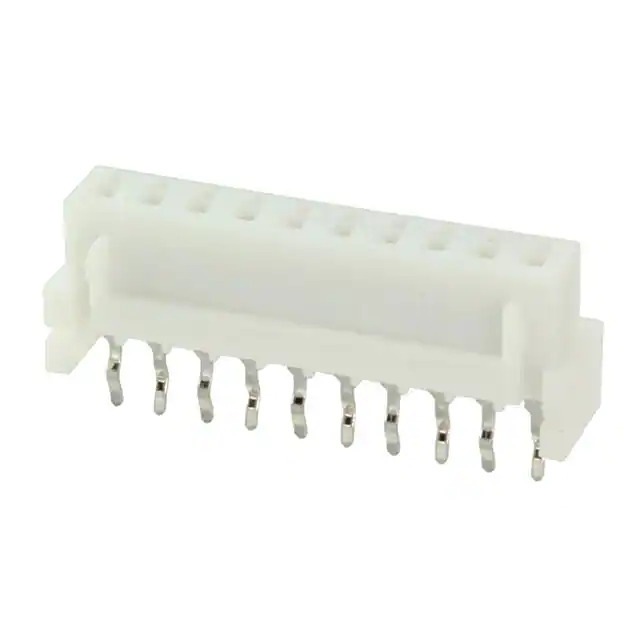

10JQ-BT JST Sales America Inc.
Same model may have multiple batches, images only for reference.

10JQ-BT

Part No 10JQ-BT
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.098 TIN PCB / 10 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr JST Sales America Inc.
Series JQ
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.098" (2.50mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Insulation Color Natural
Insulation Height 0.374" (9.50mm)
Contact Length - Post -
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post -
Mated Stacking Heights 11.8mm
Ingress Protection -
Features -
Current Rating (Amps) 3A
Voltage Rating 250V
Applications -
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post -
Base Product Number 10JQ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364423-10JQ-BT
Ultra Librarian 3D Model Ultra Librarian 10JQ-BT CAD Model

Description

The 1364423-10JQ-BT is a female socket connector from JST Sales America Inc.

  • Series: JQ series
  • Type: Board-to-board connections
  • Pitch: 0.098" (2.50mm)
  • Positions: 10 positions in a single row
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Contact Material: Phosphor bronze
  • Insulation Material: Polyamide
  • Flammability Rating: UL94 V-0
  • Operating Temperatures: -25°C to 85°C
  • Package: Bulk
  • Mounting: Through hole
  • Fastening Type: Friction lock
  • Termination: Press-fit or solder methods
  • Applications: Electronics, telecommunications, and automotive
