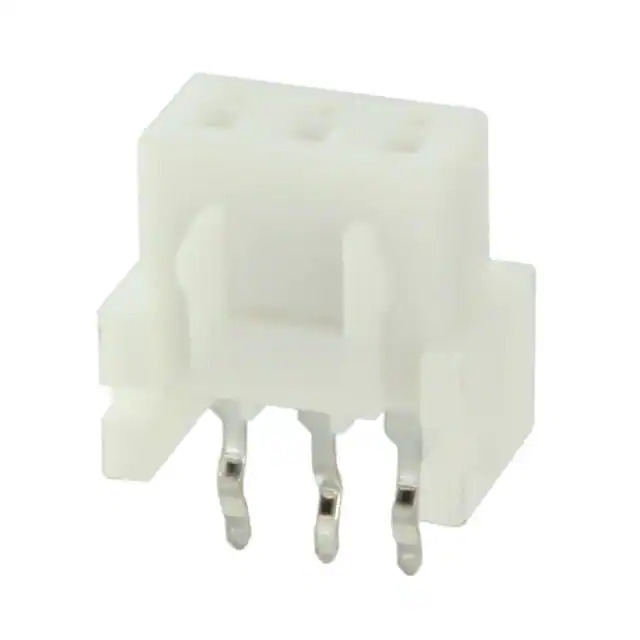

Same model may have multiple batches, images only for reference.

03JQ-BT

Name: 03JQ-BT
Brand: JST Sales America Inc.
SKU: 1364419
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	03JQ-BT
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 3POS 0.098 TIN PCB / 3 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	JST Sales America Inc.
Series	JQ
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.098" (2.50mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Insulation Color	Natural
Insulation Height	0.374" (9.50mm)
Contact Length - Post	-
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	-
Mated Stacking Heights	11.8mm
Ingress Protection	-
Features	-
Current Rating (Amps)	3A
Voltage Rating	250V
Applications	-
Insulation Material	Polyamide (PA66), Nylon 6/6
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	-
Base Product Number	03JQ
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364419-03JQ-BT
Ultra Librarian 3D Model	Ultra Librarian 03JQ-BT CAD Model

Alternative Products

Description

The 1364419-03JQ-BT is a rectangular connector header from JST Sales America Inc.

Type: Through-Hole Receptacle
Positions: 3
Rows: 1
Fastening Type: Friction Lock
Termination: Press-Fit and Solder
Pitch: 0.098" (2.50mm)
Temperature Range: -25°C to 85°C
Color: Natural
Voltage Rating: 250V
Series: JQ
Application: Board-to-Board
