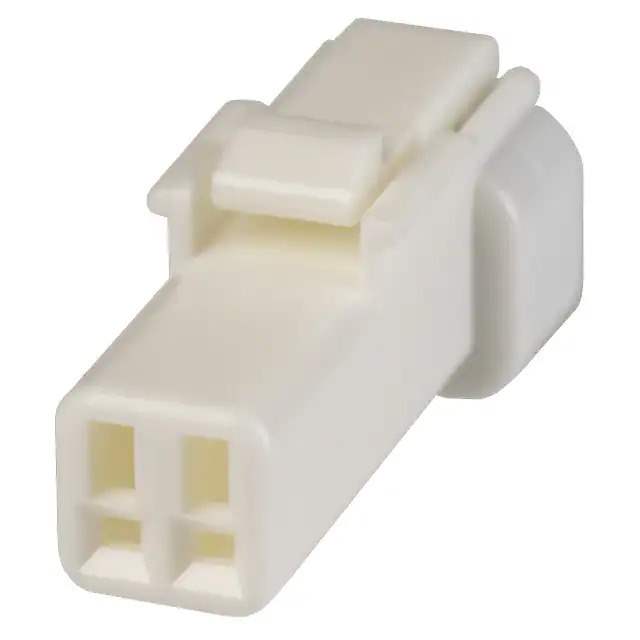

Same model may have multiple batches, images only for reference.

02R-JWPF-VSLE-S

Name: 02R-JWPF-VSLE-S
Brand: JST Sales America Inc.
SKU: 853159
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	02R-JWPF-VSLE-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 2POS 2.00MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	JWPF
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	JIS C 0920 Grade Level 7
Temperature Range - Operating	-55°C ~ 85°C
Note	Contacts Not Included
Base Product Number	02R-JWPF
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	853159-02R-JWPF-VSLE-S
Ultra Librarian 3D Model	Ultra Librarian 02R-JWPF-VSLE-S CAD Model

Alternative Products

Description

The 853159-02R-JWPF-VSLE-S is a rectangular connector housing from the JWPF series.

Positions: 2
Pitch: 0.079" (2.00mm)
Color: Natural
JIS C 0920 Grade Level: 7
Connector Type: Receptacle
Contact Gender: Female Sockets
Fastening Type: Latch Lock
Contact Termination: Crimp
Contacts Included: No
Package Quantity: 1,000 pcs
Mounting: Free Hanging (In-Line)
Operating Temperature Range: -55°C to 85°C
Flammability Rating: UL94 V-0
Product Status: Active
Manufacturer: JST Sales America Inc.
