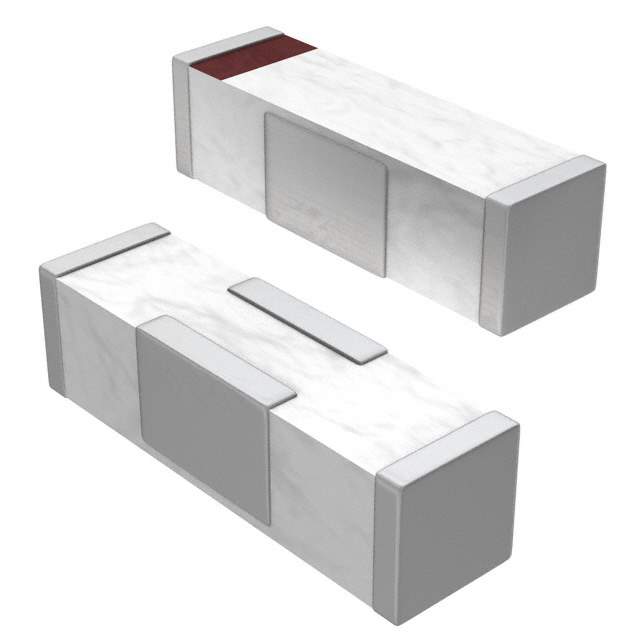

2450AT42B100E Real Image
Same model may have multiple batches, images only for reference.

2450AT42B100E

Part No 2450AT42B100E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description ANTENNA CHIP 2.4GHZ
Datasheet
2450AT42B100E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -9.5dB
Gain 0dBi
Maximum Power Dissipation 2W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Win Source Part Number 093437-2450AT42B100E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 2450AT42B100E CAD Model

Description

Product Overview

The 2450AT42B100E offers enhanced capabilities for wireless applications, providing excellent performance in environments demanding reliable connectivity.

Features and Benefits

  • Frequency Range: 2400-2500 MHz
  • Optimized Performance: Ensures superior connectivity and range
  • Durable Design: Suitable for various environmental conditions
  • Minimal Footprint: Suitable for modern compact devices

Applications

  • Wireless Routers
  • Bluetooth Audio Devices
  • Smart Home Products
  • Remote Sensors

Additional Details

Designed for excellence in signal reception and transmission, the 2450AT42B100E stands out in its category. It facilitates reliable communication, making it an ideal component for advancing modern wireless technologies.
