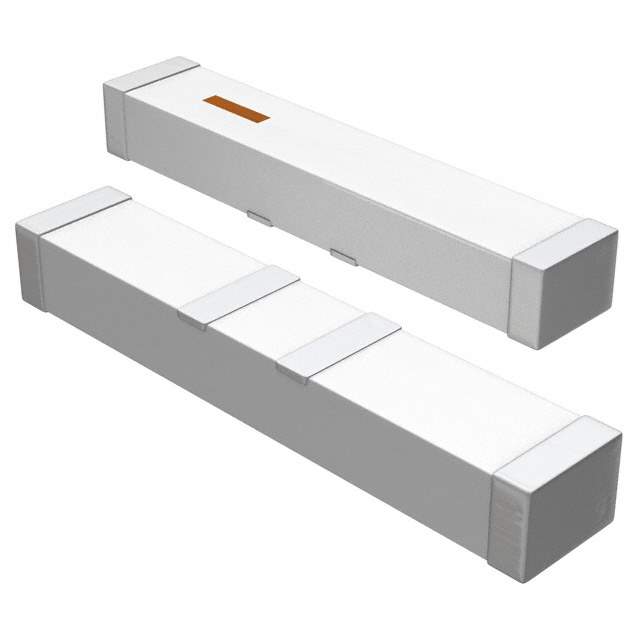

2450AD46A5400E Real Image
Same model may have multiple batches, images only for reference.

2450AD46A5400E

Part No 2450AD46A5400E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description DUALBAND ANT 2.4/5.5GHZ WIFI
Datasheet
2450AD46A5400E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.4GHz, 5.4GHz
Frequency Range 2.4GHz to 2.5GHz, 4.9GHz to 5.9GHz
Antenna Type Chip
Number of Bands 2
Return Loss -8.5dB
Gain 1dBi, -1.5dBi
Maximum Power Dissipation 3W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.047" (1.20mm)
Applications Wi-Fi
Win Source Part Number 130000-2450AD46A5400E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 2450AD46A5400E CAD Model

Description

Product Overview: 2450AD46A5400E

The 2450AD46A5400E component delivers reliable performance tailored for diverse electronic circuits and systems.

Applications:

  • Embedded systems
  • Digital signal processing
  • Wearable technology
  • Networking devices

Features and Benefits:

  • Optimized for low power consumption
  • Compact form factor
  • High impedance control
  • Strong signal integrity

The 2450AD46A5400E is perfect for developers who prioritize efficiency and miniaturization in their electronic configurations.
