Same model may have multiple batches, images only for reference.

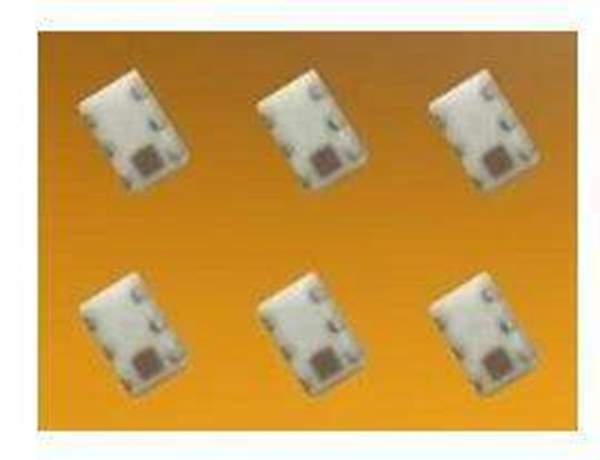

1720BL15B0050E Johanson Technology
Same model may have multiple batches, images only for reference.

1720BL15B0050E

Part No 1720BL15B0050E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description Signal Conditioning PLEASE SEE GLOBAL MFG PN: 1720BL15B0050001E
Datasheet
1720BL15B0050E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Johanson
Product Baluns
Frequency 1.72 GHz
Frequency Range 625 MHz to 2.815 GHz
Impedance 50 Ohms
Termination Style SMD/SMT
Package / Case 0805 (2012 metric)
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series BL
Country of Origin TW
Ultra Librarian 3D Model Ultra Librarian 1720BL15B0050E CAD Model

Description

Signal Conditioning PLEASE SEE GLOBAL MFG PN: 1720BL15B0050001E
