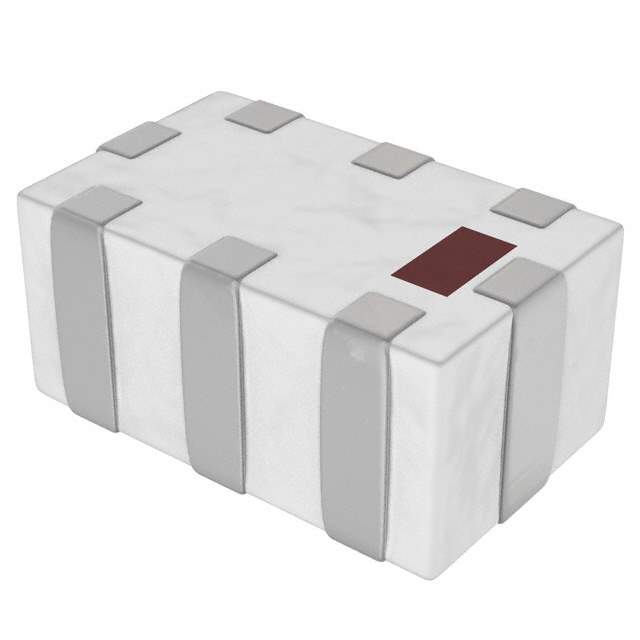

0500LP15A500E Real Image
Same model may have multiple batches, images only for reference.

0500LP15A500E

Part No 0500LP15A500E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER LOW PASS 500MHZ 0805  /  500MHz Center Frequency Low Pass RF Filter (Radio Frequency) 500MHz Bandwidth 0.7dB 0805 (2012 Metric), 8 PC Pad
Datasheet
0500LP15A500E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Johanson Technology Inc.
Package Tape & Reel
Frequency 500MHz Center
Bandwidth 500MHz
Filter Type Low Pass
Insertion Loss 0.7dB
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 8 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 0500LP15A500,712-1117-1,712-1117-2,712-1117-6
Standard Package 4,000
Win Source Part Number 1114278-0500LP15A500E
Ultra Librarian 3D Model Ultra Librarian 0500LP15A500E CAD Model

Description

The 1114278-0500LP15A500E is a low pass RF filter that is suitable for use in a wide range of electronic devices manufactured by Johanson Technology Inc.

  • Filter Type: Low Pass
  • Frequency Center: 500MHz
  • Bandwidth: 500MHz
  • Insertion Loss: 0.7dB
  • Mounting: Surface Mountable
  • Package: 0805 (2012 Metric)
  • Number of Pads: 8 PC
  • Standard Package: 4,000
  • Operating Temperature: -55°C to 125°C
