Same model may have multiple batches, images only for reference.

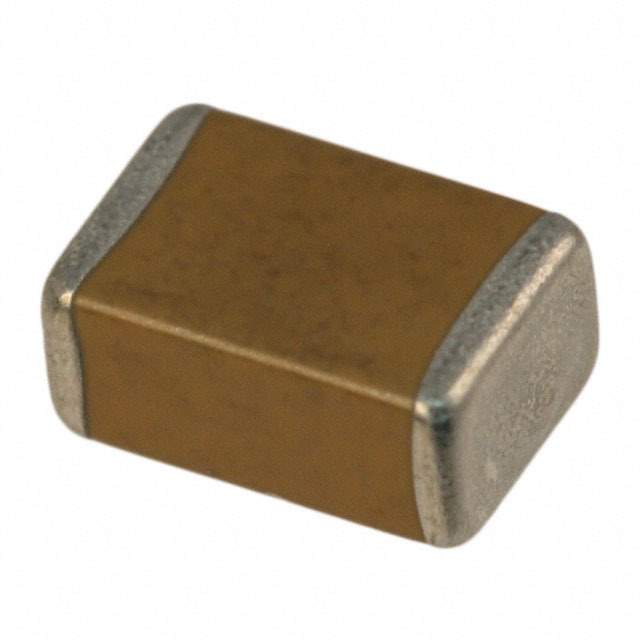

102S43W473KV4E Real Image
Same model may have multiple batches, images only for reference.

102S43W473KV4E

Part No 102S43W473KV4E
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 0.047UF 1KV X7R 1812 / 0.047 µF ±10% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric)
Datasheet
102S43W473KV4E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Capacitance 0.047 µF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Dimension 0.180" L x 0.125" W (4.57mm x 3.17mm)
Thickness (Max) 0.110" (2.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 709-1301-6,709-1301-1,709-1301-2
Standard Package 1,000
Win Source Part Number 1177680-102S43W473KV4E
Ultra Librarian 3D Model Ultra Librarian 102S43W473KV4E CAD Model

Description

The Johanson Dielectrics Inc. electronic component is a ceramic capacitor with a capacitance of 0.047 µF and a voltage rating of 1000V (1kV).

  • Capacitance: 0.047 µF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting: Surface mountable
  • Package/Case: 1812 (4532 Metric)
  • Temperature Range: -55°C ~ 125°C
  • REACH: Unaffected
