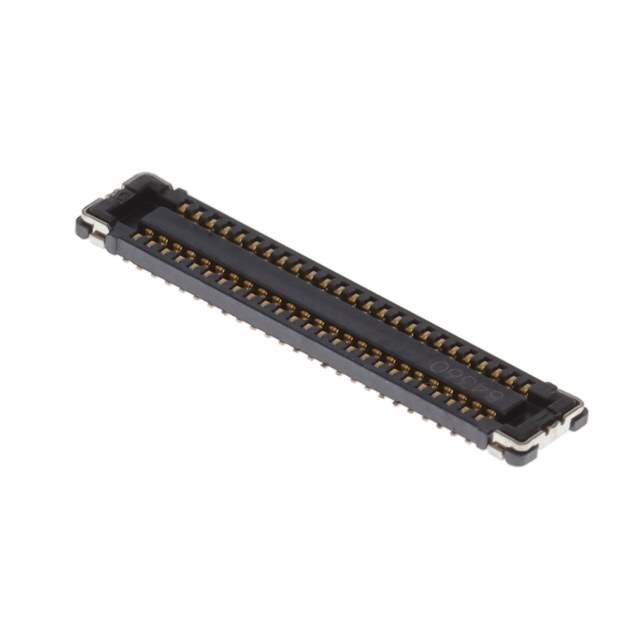

WP7B-S050VA1-R8000

Part No WP7B-S050VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 50POS SMD GOLD / 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP7
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.028" (0.71mm)
Base Product Number WP7B-S05
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-3056-6,WP7B-S050VA1-R8000-ND,670-3056-2,670-3056-1
Standard Package 8,000
Win Source Part Number 968233-WP7B-S050VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP7B-S050VA1-R8000 CAD Model

Description

The WP7B-S050VA1-R8000 is a receptacle connector with center strip contacts from JAE Electronics.

  • Connector Type: Rectangular Connector Array, Edge Type, Mezzanine (Board to Board)
  • Pitch: 0.016" (0.40mm)
  • Number of Positions: 50
  • Features: Solder Retention
  • Number of Rows: 2
  • Contact Finish Thickness: 4.00µin (0.100µm) Gold
  • Height Above Board: 0.028" (0.71mm)
  • Mounting Type: SMD (SMT)
  • Series: WP7
  • Mated Stacking Height: 0.7mm
  • Standard Package: 8,000
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
